G4ParticleHPNAInelasticFS Class Reference

#include <G4ParticleHPNAInelasticFS.hh>

Inheritance diagram for G4ParticleHPNAInelasticFS:

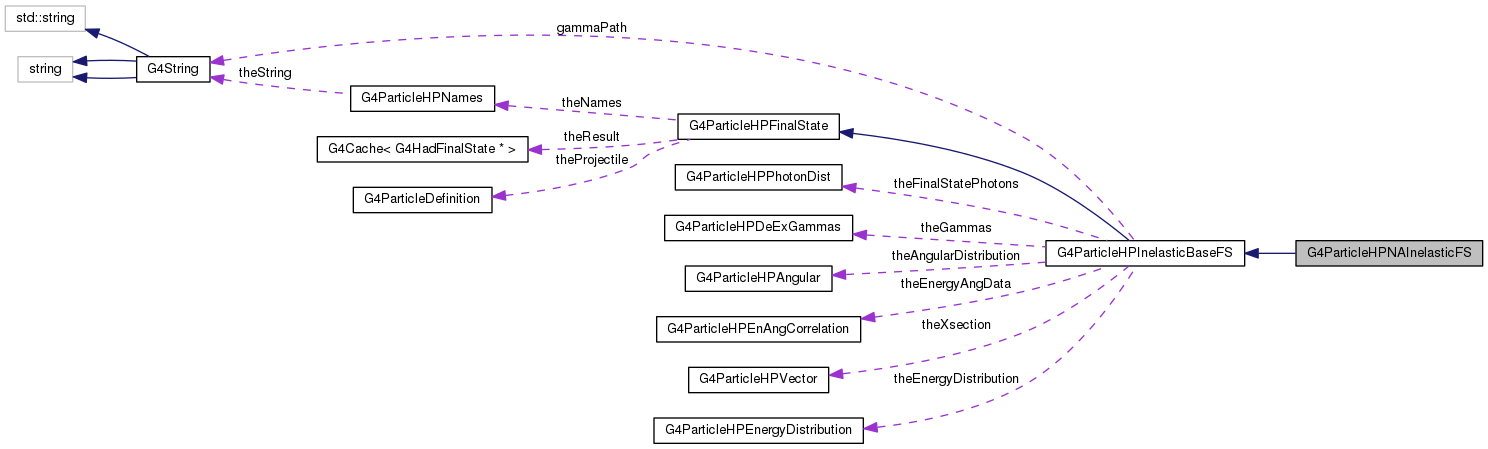

Collaboration diagram for G4ParticleHPNAInelasticFS:

Public Member Functions

 G4ParticleHPNAInelasticFS ()

 ~G4ParticleHPNAInelasticFS ()

void Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType, G4ParticleDefinition *)

G4HadFinalStateApplyYourself (const G4HadProjectile &theTrack)

G4ParticleHPFinalStateNew ()

- Public Member Functions inherited from G4ParticleHPInelasticBaseFS
 G4ParticleHPInelasticBaseFS ()

virtual ~G4ParticleHPInelasticBaseFS ()

void BaseApply (const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)

void InitGammas (G4double AR, G4double ZR)

virtual G4double GetXsec (G4double anEnergy)

virtual G4ParticleHPVectorGetXsec ()

- Public Member Functions inherited from G4ParticleHPFinalState
 G4ParticleHPFinalState ()

virtual ~G4ParticleHPFinalState ()

void Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)

G4bool HasXsec ()

G4bool HasFSData ()

G4bool HasAnyData ()

void SetA_Z (G4double anA, G4double aZ, G4int aM=0)

G4double GetZ ()

G4double GetN ()

G4double GetA ()

G4int GetM ()

void SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)

void SetProjectile (G4ParticleDefinition *projectile)


Additional Inherited Members

- Protected Member Functions inherited from G4ParticleHPFinalState
void adjust_final_state (G4LorentzVector)

G4bool DoNotAdjustFinalState ()

- Protected Attributes inherited from G4ParticleHPInelasticBaseFS
G4ParticleHPVectortheXsection

G4ParticleHPEnergyDistributiontheEnergyDistribution

G4ParticleHPAngulartheAngularDistribution

G4ParticleHPEnAngCorrelationtheEnergyAngData

G4ParticleHPPhotonDisttheFinalStatePhotons

G4double theNuclearMassDifference

G4ParticleHPDeExGammas theGammas

G4String gammaPath

- Protected Attributes inherited from G4ParticleHPFinalState
G4bool hasXsec

G4bool hasFSData

G4bool hasAnyData

G4ParticleHPNames theNames

G4Cache< G4HadFinalState * > theResult

G4double theBaseA

G4double theBaseZ

G4int theBaseM

G4int theNDLDataZ

G4int theNDLDataA

G4int theNDLDataM

G4ParticleDefinitiontheProjectile


Detailed Description

Definition at line 41 of file G4ParticleHPNAInelasticFS.hh.

Constructor & Destructor Documentation

G4ParticleHPNAInelasticFS::G4ParticleHPNAInelasticFS ( )
inline

Definition at line 45 of file G4ParticleHPNAInelasticFS.hh.

45 {}

Here is the caller graph for this function:

G4ParticleHPNAInelasticFS::~G4ParticleHPNAInelasticFS ( )
inline

Definition at line 46 of file G4ParticleHPNAInelasticFS.hh.

46 {}

Member Function Documentation

G4HadFinalState * G4ParticleHPNAInelasticFS::ApplyYourself ( const G4HadProjectile theTrack)
virtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 36 of file G4ParticleHPNAInelasticFS.cc.

37 {
38 // these are the particle types in the final state
39
40  G4ParticleDefinition * theDefs[2];
41  theDefs[0] = G4Neutron::Neutron();
42  theDefs[1] = G4Alpha::Alpha();
43
44 // fill the final state
45  G4ParticleHPInelasticBaseFS::BaseApply(theTrack, theDefs, 2);
46
47 // return the result
48  return theResult.Get();
49 }
G4Cache< G4HadFinalState * > theResult
value_type & Get() const
Definition: G4Cache.hh:282
void BaseApply(const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)
static G4Neutron * Neutron()
Definition: G4Neutron.cc:104
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89

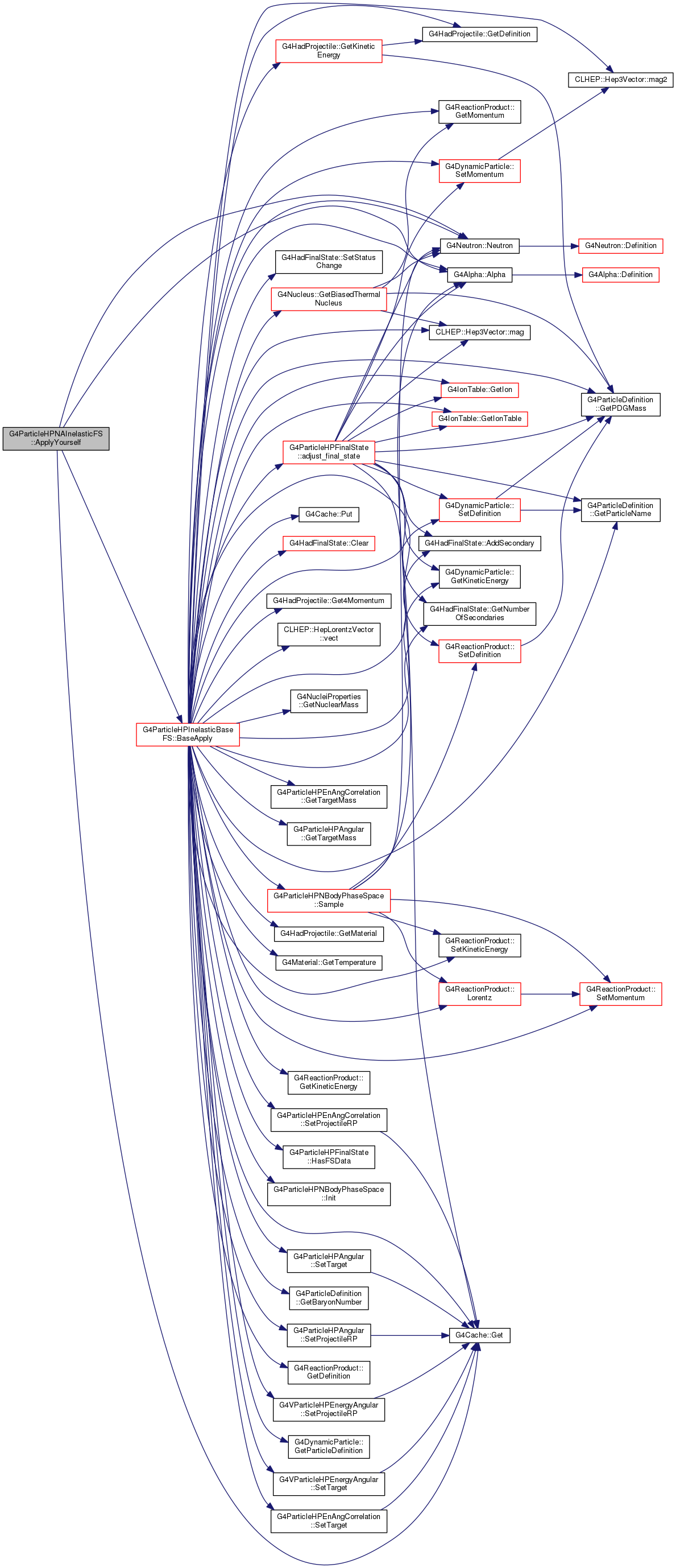

Here is the call graph for this function:

void G4ParticleHPNAInelasticFS::Init ( G4double  A,
G4double  Z,
G4int  M,
G4String dirName,
G4String aFSType,
G4ParticleDefinition projectile
)
virtual

Reimplemented from G4ParticleHPInelasticBaseFS.

Definition at line 52 of file G4ParticleHPNAInelasticFS.cc.

53 {
54  G4ParticleHPInelasticBaseFS::Init(A, Z, M, dirName, aFSType, projectile);
55  G4double ResidualA = 0;
56  G4double ResidualZ = 0;
57  if( projectile == G4Neutron::Neutron() ) {
58  ResidualA = A-4;
59  ResidualZ = Z-2;
60  } else if( projectile == G4Proton::Proton() ) {
61  ResidualA = A-4;
62  ResidualZ = Z-1;
63  } else if( projectile == G4Deuteron::Deuteron() ) {
64  ResidualA = A-3;
65  ResidualZ = Z-1;
66  } else if( projectile == G4Triton::Triton() ) {
67  ResidualA = A-2;
68  ResidualZ = Z-1;
69  } else if( projectile == G4He3::He3() ) {
70  ResidualA = A-2;
71  ResidualZ = Z;
72  } else if( projectile == G4Alpha::Alpha() ) {
73  ResidualA = A-1;
74  ResidualZ = Z;
75  }
76
77  G4ParticleHPInelasticBaseFS::InitGammas(ResidualA, ResidualZ);
78 }
double A(double temperature)
static G4Triton * Triton()
Definition: G4Triton.cc:95
static G4Proton * Proton()
Definition: G4Proton.cc:93
static G4Neutron * Neutron()
Definition: G4Neutron.cc:104
static G4Deuteron * Deuteron()
Definition: G4Deuteron.cc:94
void InitGammas(G4double AR, G4double ZR)
static G4Alpha * Alpha()
Definition: G4Alpha.cc:89
void Init(G4double A, G4double Z, G4int M, G4String &dirName, G4String &bit, G4ParticleDefinition *)
double G4double
Definition: G4Types.hh:76
static G4He3 * He3()
Definition: G4He3.cc:94

Here is the call graph for this function:

G4ParticleHPFinalState* G4ParticleHPNAInelasticFS::New ( )
inlinevirtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 49 of file G4ParticleHPNAInelasticFS.hh.

Here is the call graph for this function:


The documentation for this class was generated from the following files:
