G4ParticleHP3NPInelasticFS Class Reference

#include <G4ParticleHP3NPInelasticFS.hh>

Inheritance diagram for G4ParticleHP3NPInelasticFS:

Collaboration diagram for G4ParticleHP3NPInelasticFS:

Public Member Functions
	G4ParticleHP3NPInelasticFS ()
	~G4ParticleHP3NPInelasticFS ()
void	Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &aFSType, G4ParticleDefinition *)
G4HadFinalState *	ApplyYourself (const G4HadProjectile &theTrack)
G4ParticleHPFinalState *	New ()
Public Member Functions inherited from G4ParticleHPInelasticBaseFS
	G4ParticleHPInelasticBaseFS ()
virtual	~G4ParticleHPInelasticBaseFS ()
void	Init (G4double A, G4double Z, G4int M, G4String &dirName, G4String &bit, G4ParticleDefinition *)
void	BaseApply (const G4HadProjectile &theTrack, G4ParticleDefinition **theDefs, G4int nDef)
void	InitGammas (G4double AR, G4double ZR)
virtual G4double	GetXsec (G4double anEnergy)
virtual G4ParticleHPVector *	GetXsec ()
Public Member Functions inherited from G4ParticleHPFinalState
	G4ParticleHPFinalState ()
virtual	~G4ParticleHPFinalState ()
void	Init (G4double A, G4double Z, G4String &dirName, G4String &aFSType, G4ParticleDefinition *projectile)
G4bool	HasXsec ()
G4bool	HasFSData ()
G4bool	HasAnyData ()
void	SetA_Z (G4double anA, G4double aZ, G4int aM=0)
G4double	GetZ ()
G4double	GetN ()
G4double	GetA ()
G4int	GetM ()
void	SetAZMs (G4double anA, G4double aZ, G4int aM, G4ParticleHPDataUsed used)
void	SetProjectile (G4ParticleDefinition *projectile)

Additional Inherited Members
Protected Member Functions inherited from G4ParticleHPFinalState
void	adjust_final_state (G4LorentzVector)
G4bool	DoNotAdjustFinalState ()
Protected Attributes inherited from G4ParticleHPInelasticBaseFS
G4ParticleHPVector *	theXsection
G4ParticleHPEnergyDistribution *	theEnergyDistribution
G4ParticleHPAngular *	theAngularDistribution
G4ParticleHPEnAngCorrelation *	theEnergyAngData
G4ParticleHPPhotonDist *	theFinalStatePhotons
G4double	theNuclearMassDifference
G4ParticleHPDeExGammas	theGammas
G4String	gammaPath
Protected Attributes inherited from G4ParticleHPFinalState
G4bool	hasXsec
G4bool	hasFSData
G4bool	hasAnyData
G4ParticleHPNames	theNames
G4Cache< G4HadFinalState * >	theResult
G4double	theBaseA
G4double	theBaseZ
G4int	theBaseM
G4int	theNDLDataZ
G4int	theNDLDataA
G4int	theNDLDataM
G4ParticleDefinition *	theProjectile

Detailed Description

Definition at line 42 of file G4ParticleHP3NPInelasticFS.hh.

Constructor & Destructor Documentation

G4ParticleHP3NPInelasticFS::G4ParticleHP3NPInelasticFS ( )

inline

Definition at line 46 of file G4ParticleHP3NPInelasticFS.hh.

{}

Here is the caller graph for this function:

G4ParticleHP3NPInelasticFS::~G4ParticleHP3NPInelasticFS ( )

inline

Definition at line 47 of file G4ParticleHP3NPInelasticFS.hh.

{}

Member Function Documentation

G4HadFinalState * G4ParticleHP3NPInelasticFS::ApplyYourself ( const G4HadProjectile &  theTrack )

virtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 36 of file G4ParticleHP3NPInelasticFS.cc.

{
// these are the particle types in the final state

  G4ParticleDefinition * theDefs[4];
  theDefs[0] = G4Neutron::Neutron();
  theDefs[1] = G4Neutron::Neutron();
  theDefs[2] = G4Neutron::Neutron();
  theDefs[3] = G4Proton::Proton();

// fill the final state
  G4ParticleHPInelasticBaseFS::BaseApply(theTrack, theDefs, 4);

// return the result
   return theResult.Get();
}

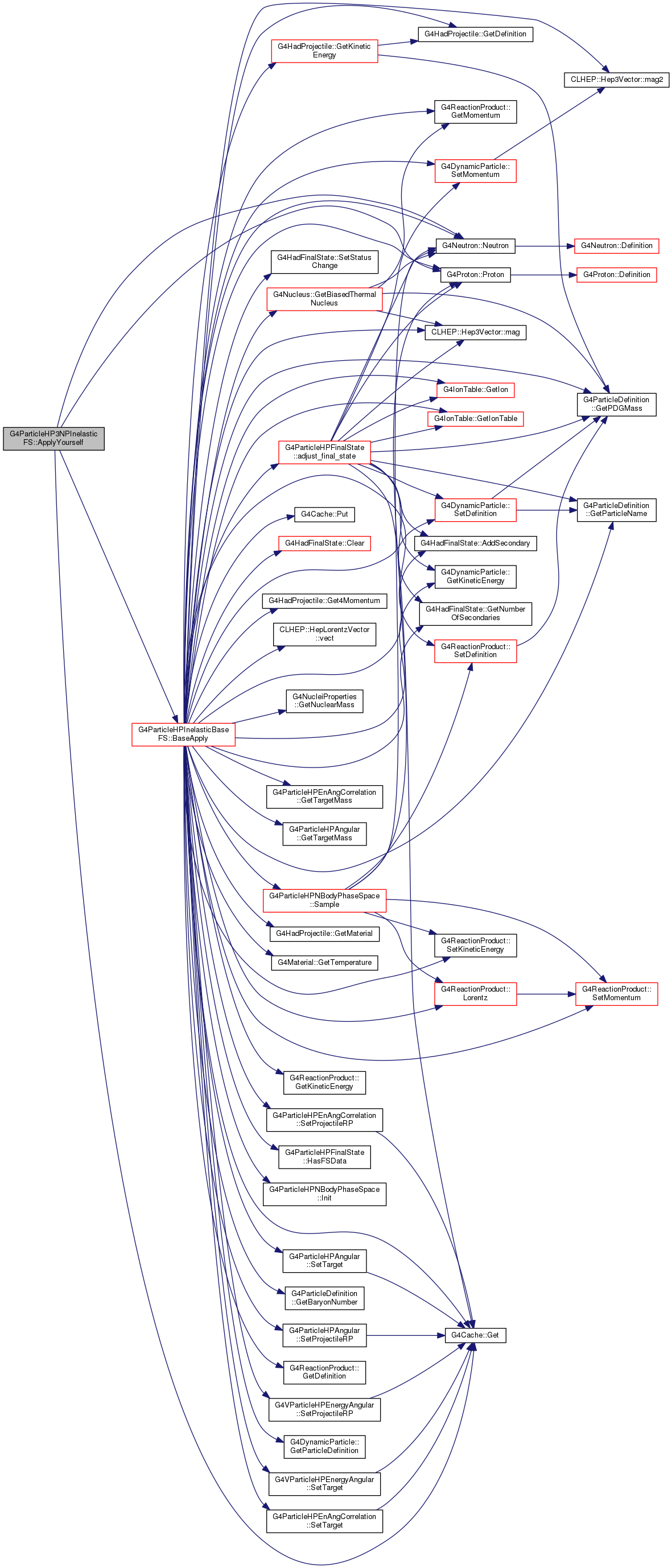

Here is the call graph for this function:

void G4ParticleHP3NPInelasticFS::Init ( G4double  A, G4double  Z, G4int  M, G4String &  dirName, G4String &  aFSType, G4ParticleDefinition *  projectile  )

virtual

Implements G4ParticleHPFinalState.

Definition at line 54 of file G4ParticleHP3NPInelasticFS.cc.

{
   G4ParticleHPInelasticBaseFS::Init(A, Z, M, dirName, aFSType, projectile);
   G4double ResidualA = 0;
   G4double ResidualZ = 0;
   if( projectile == G4Neutron::Neutron() ) {
     ResidualA = A-3;
     ResidualZ = Z-1;
   } else if( projectile == G4Proton::Proton() ) {
     ResidualA = A-3;
     ResidualZ = Z;
   } else if( projectile == G4Deuteron::Deuteron() ) {
     ResidualA = A-2;
     ResidualZ = Z;
   } else if( projectile == G4Triton::Triton() ) {
     ResidualA = A-1;
     ResidualZ = Z;
   } else if( projectile == G4He3::He3() ) {
     ResidualA = A-1;
     ResidualZ = Z+1;
   } else if( projectile == G4Alpha::Alpha() ) {
     ResidualA = A;
     ResidualZ = Z+1;
   }

   G4ParticleHPInelasticBaseFS::InitGammas(ResidualA, ResidualZ);
}

Here is the call graph for this function:

G4ParticleHPFinalState* G4ParticleHP3NPInelasticFS::New ( )

inlinevirtual

Implements G4ParticleHPInelasticBaseFS.

Definition at line 50 of file G4ParticleHP3NPInelasticFS.hh.

  {
   G4ParticleHP3NPInelasticFS * theNew = new G4ParticleHP3NPInelasticFS;
   return theNew;
  }

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/processes/hadronic/models/particle_hp/include/G4ParticleHP3NPInelasticFS.hh
• source/geant4.10.03.p02/source/processes/hadronic/models/particle_hp/src/G4ParticleHP3NPInelasticFS.cc
