G4INCL::FinalState Class Reference

#include <G4INCLFinalState.hh>

Public Member Functions
	FinalState ()
virtual	~FinalState ()
void	reset ()
void	setTotalEnergyBeforeInteraction (G4double E)
G4double	getTotalEnergyBeforeInteraction () const
void	addModifiedParticle (Particle *p)
void	addOutgoingParticle (Particle *p)
void	addDestroyedParticle (Particle *p)
void	addCreatedParticle (Particle *p)
void	addEnteringParticle (Particle *p)
ParticleList const &	getModifiedParticles () const
ParticleList const &	getOutgoingParticles () const
ParticleList const &	getDestroyedParticles () const
ParticleList const &	getCreatedParticles () const
ParticleList const &	getEnteringParticles () const
FinalStateValidity	getValidity () const
void	makeValid ()
void	makePauliBlocked ()
void	makeNoEnergyConservation ()
void	makeParticleBelowFermi ()
void	makeParticleBelowZero ()
std::string	print () const

Detailed Description

Final state of an interaction

Definition at line 64 of file G4INCLFinalState.hh.

Constructor & Destructor Documentation

G4INCL::FinalState::FinalState

(

)

Definition at line 42 of file G4INCLFinalState.cc.

                         {
    reset();
  }

Here is the call graph for this function:

G4INCL::FinalState::~FinalState ( )

virtual

Definition at line 46 of file G4INCLFinalState.cc.

  {
  }

Member Function Documentation

void G4INCL::FinalState::addCreatedParticle

(

Particle *

p

)

Definition at line 75 of file G4INCLFinalState.cc.

  {
    created.push_back(p);
  }

Here is the caller graph for this function:

void G4INCL::FinalState::addDestroyedParticle

(

Particle *

p

)

Definition at line 70 of file G4INCLFinalState.cc.

  {
    destroyed.push_back(p);
  }

Here is the caller graph for this function:

void G4INCL::FinalState::addEnteringParticle

(

Particle *

p

)

Definition at line 80 of file G4INCLFinalState.cc.

  {
    entering.push_back(p);
  }

Here is the caller graph for this function:

void G4INCL::FinalState::addModifiedParticle

(

Particle *

p

)

Definition at line 60 of file G4INCLFinalState.cc.

  {
    modified.push_back(p);
  }

Here is the caller graph for this function:

void G4INCL::FinalState::addOutgoingParticle

(

Particle *

p

)

Definition at line 65 of file G4INCLFinalState.cc.

  {
    outgoing.push_back(p);
  }

Here is the caller graph for this function:

ParticleList const & G4INCL::FinalState::getCreatedParticles

(

)

const

Definition at line 100 of file G4INCLFinalState.cc.

  {
    return created;
  }

Here is the caller graph for this function:

ParticleList const & G4INCL::FinalState::getDestroyedParticles

(

)

const

Definition at line 95 of file G4INCLFinalState.cc.

  {
    return destroyed;
  }

Here is the caller graph for this function:

ParticleList const & G4INCL::FinalState::getEnteringParticles

(

)

const

Definition at line 105 of file G4INCLFinalState.cc.

  {
    return entering;
  }

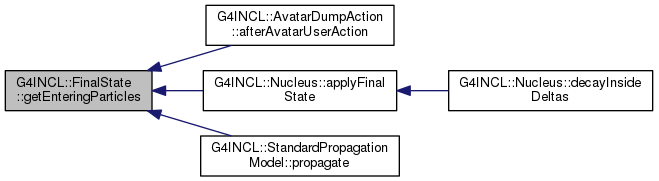

Here is the caller graph for this function:

ParticleList const & G4INCL::FinalState::getModifiedParticles

(

)

const

Definition at line 85 of file G4INCLFinalState.cc.

  {
    return modified;
  }

Here is the caller graph for this function:

ParticleList const & G4INCL::FinalState::getOutgoingParticles

(

)

const

Definition at line 90 of file G4INCLFinalState.cc.

  {
    return outgoing;
  }

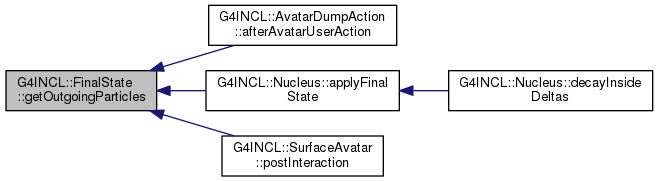

Here is the caller graph for this function:

G4double G4INCL::FinalState::getTotalEnergyBeforeInteraction ( ) const

inline

Definition at line 72 of file G4INCLFinalState.hh.

{ return totalEnergyBeforeInteraction; };

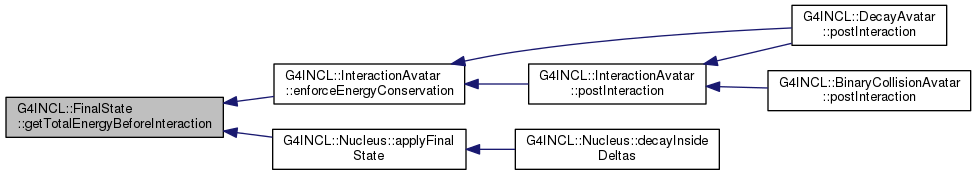

Here is the caller graph for this function:

FinalStateValidity G4INCL::FinalState::getValidity ( ) const

inline

Definition at line 86 of file G4INCLFinalState.hh.

{ return validity; }

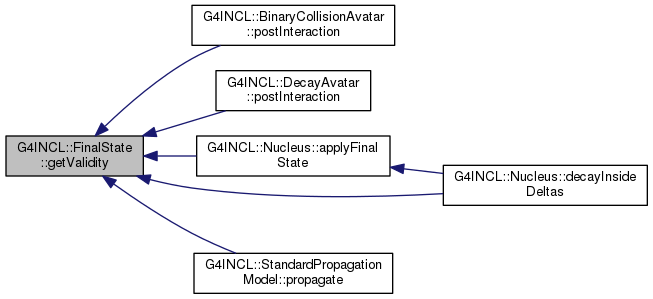

Here is the caller graph for this function:

void G4INCL::FinalState::makeNoEnergyConservation ( )

inline

Definition at line 89 of file G4INCLFinalState.hh.

{ validity = NoEnergyConservationFS; }

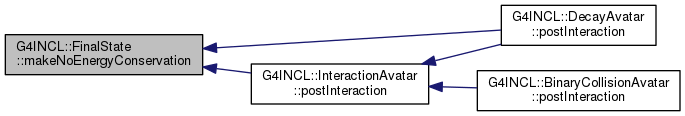

Here is the caller graph for this function:

void G4INCL::FinalState::makeParticleBelowFermi ( )

inline

Definition at line 90 of file G4INCLFinalState.hh.

{ validity = ParticleBelowFermiFS; }

Here is the caller graph for this function:

void G4INCL::FinalState::makeParticleBelowZero ( )

inline

Definition at line 91 of file G4INCLFinalState.hh.

{ validity = ParticleBelowZeroFS; }

Here is the caller graph for this function:

void G4INCL::FinalState::makePauliBlocked ( )

inline

Definition at line 88 of file G4INCLFinalState.hh.

{ validity = PauliBlockedFS; }

Here is the caller graph for this function:

void G4INCL::FinalState::makeValid ( )

inline

Definition at line 87 of file G4INCLFinalState.hh.

{ validity = ValidFS; }

std::string G4INCL::FinalState::print

(

)

const

Definition at line 110 of file G4INCLFinalState.cc.

                                    {
    std::stringstream ss;
    ss << "Modified particles:" << '\n';
    for(ParticleIter iter=modified.begin(), e=modified.end(); iter!=e; ++iter)
      ss << (*iter)->print();
    ss << "Outgoing particles:" << '\n';
    for(ParticleIter iter=outgoing.begin(), e=outgoing.end(); iter!=e; ++iter)
      ss << (*iter)->print();
    ss << "Destroyed particles:" << '\n';
    for(ParticleIter iter=destroyed.begin(), e=destroyed.end(); iter!=e; ++iter)
      ss << (*iter)->print();
    ss << "Created particles:" << '\n';
    for(ParticleIter iter=created.begin(), e=created.end(); iter!=e; ++iter)
      ss << (*iter)->print();
    ss << "Entering particles:" << '\n';
    for(ParticleIter iter=entering.begin(), e=entering.end(); iter!=e; ++iter)
      ss << (*iter)->print();
    return ss.str();
  }

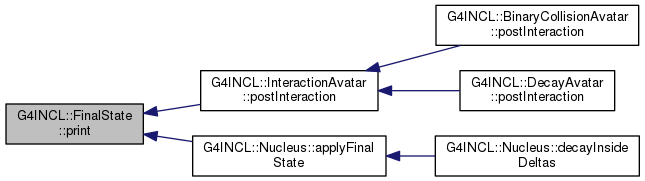

Here is the caller graph for this function:

void G4INCL::FinalState::reset

(

)

Definition at line 50 of file G4INCLFinalState.cc.

                         {
    totalEnergyBeforeInteraction = 0.0;
    validity = ValidFS;
    outgoing.clear();
    created.clear();
    destroyed.clear();
    modified.clear();
    entering.clear();
  }

Here is the caller graph for this function:

void G4INCL::FinalState::setTotalEnergyBeforeInteraction ( G4double  E )

inline

Definition at line 71 of file G4INCLFinalState.hh.

{ totalEnergyBeforeInteraction = E; };

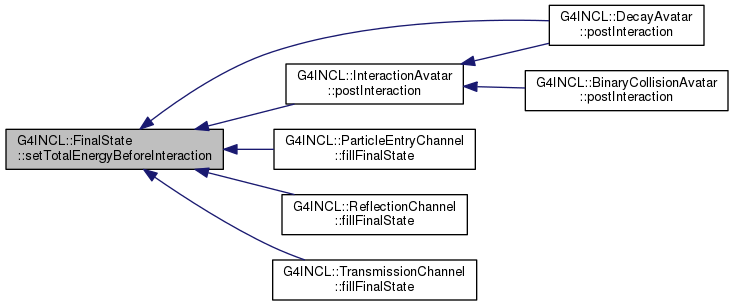

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/processes/hadronic/models/inclxx/utils/include/G4INCLFinalState.hh
• source/geant4.10.03.p02/source/processes/hadronic/models/inclxx/utils/src/G4INCLFinalState.cc
