G4GMocrenFileCTtoDensityMap Class Reference

#include <G4GMocrenFileCTtoDensityMap.hh>

Public Member Functions
	G4GMocrenFileCTtoDensityMap ()
	~G4GMocrenFileCTtoDensityMap ()
G4int	GetMinCT () const
G4int	GetMaxCT () const
G4double	GetDensity (G4int &_ct) const

Protected Attributes
G4int	kCTMinMax [2]
G4double *	kDensity
G4int	kSize

Detailed Description

Definition at line 39 of file G4GMocrenFileCTtoDensityMap.hh.

Constructor & Destructor Documentation

G4GMocrenFileCTtoDensityMap::G4GMocrenFileCTtoDensityMap

(

)

Definition at line 645 of file G4GMocrenFileCTtoDensityMap.cc.

  : kDensity(NULL) {

  kCTMinMax[0] = -1024;
  kCTMinMax[1] = 2048;
  kSize = kCTMinMax[1] - kCTMinMax[0] + 1;
  kDensity = new G4double[kSize];
  for(int i = 0; i < kSize; i++) {
    kDensity[i] = GMocrenFileCTDensMap[i];
  }
}

G4GMocrenFileCTtoDensityMap::~G4GMocrenFileCTtoDensityMap

(

)

Definition at line 657 of file G4GMocrenFileCTtoDensityMap.cc.

                                                          {
  if(kDensity != NULL)  delete [] kDensity;
}

Member Function Documentation

G4double G4GMocrenFileCTtoDensityMap::GetDensity

(

G4int &

_ct

)

const

Definition at line 661 of file G4GMocrenFileCTtoDensityMap.cc.

                                                                  {
  G4double dens = 0.;
  if(_ct < kCTMinMax[0])
    dens = kDensity[0];
  else if(_ct > kCTMinMax[1])
    dens = kDensity[kSize-1];
  else
    dens = kDensity[_ct - kCTMinMax[0]];

  return dens;
}

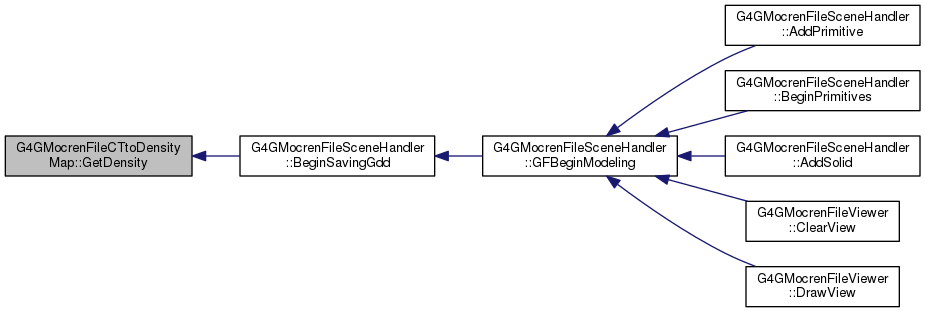

Here is the caller graph for this function:

G4int G4GMocrenFileCTtoDensityMap::GetMaxCT ( ) const

inline

Definition at line 47 of file G4GMocrenFileCTtoDensityMap.hh.

{return kCTMinMax[1];}

Here is the caller graph for this function:

G4int G4GMocrenFileCTtoDensityMap::GetMinCT ( ) const

inline

Definition at line 45 of file G4GMocrenFileCTtoDensityMap.hh.

{return kCTMinMax[0];}

Here is the caller graph for this function:

Member Data Documentation

G4int G4GMocrenFileCTtoDensityMap::kCTMinMax[2]

protected

Definition at line 52 of file G4GMocrenFileCTtoDensityMap.hh.

G4double* G4GMocrenFileCTtoDensityMap::kDensity

protected

Definition at line 53 of file G4GMocrenFileCTtoDensityMap.hh.

G4int G4GMocrenFileCTtoDensityMap::kSize

protected

Definition at line 54 of file G4GMocrenFileCTtoDensityMap.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/visualization/gMocren/include/G4GMocrenFileCTtoDensityMap.hh
• source/geant4.10.03.p02/source/visualization/gMocren/src/G4GMocrenFileCTtoDensityMap.cc
