G4FTFBinaryPiKBuilder Class Reference

#include <G4FTFBinaryPiKBuilder.hh>

Inheritance diagram for G4FTFBinaryPiKBuilder:

Collaboration diagram for G4FTFBinaryPiKBuilder:

Public Member Functions
	G4FTFBinaryPiKBuilder (G4bool quasiElastic=false)
virtual	~G4FTFBinaryPiKBuilder ()
virtual void	Build (G4HadronElasticProcess *aP)
virtual void	Build (G4PionPlusInelasticProcess *aP)
virtual void	Build (G4PionMinusInelasticProcess *aP)
virtual void	Build (G4KaonPlusInelasticProcess *aP)
virtual void	Build (G4KaonMinusInelasticProcess *aP)
virtual void	Build (G4KaonZeroLInelasticProcess *aP)
virtual void	Build (G4KaonZeroSInelasticProcess *aP)
void	SetMinEnergy (G4double aM)
Public Member Functions inherited from G4VPiKBuilder
	G4VPiKBuilder ()
virtual	~G4VPiKBuilder ()

Detailed Description

Definition at line 58 of file G4FTFBinaryPiKBuilder.hh.

Constructor & Destructor Documentation

G4FTFBinaryPiKBuilder::G4FTFBinaryPiKBuilder

(

G4bool

quasiElastic = false

)

Definition at line 51 of file G4FTFBinaryPiKBuilder.cc.

{
  thePiData = new G4CrossSectionPairGG((G4PiNuclearCrossSection*)G4CrossSectionDataSetRegistry::Instance()->GetCrossSectionDataSet(G4PiNuclearCrossSection::Default_Name()), 91*GeV);
  theMin = 4*GeV;
  theModel = new G4TheoFSGenerator("FTFB");

  theStringModel = new G4FTFModel;
  theStringDecay = new G4ExcitedStringDecay(new G4LundStringFragmentation);
  theStringModel->SetFragmentationModel(theStringDecay);

  theCascade = new G4BinaryCascade;

  theModel->SetHighEnergyGenerator(theStringModel);
  if (quasiElastic)
  {
     theQuasiElastic=new G4QuasiElasticChannel;
     theModel->SetQuasiElasticChannel(theQuasiElastic);
  } else
  {  theQuasiElastic=0;}

  theModel->SetTransport(theCascade);
  theModel->SetMinEnergy(theMin);
  theModel->SetMaxEnergy(100*TeV);
}

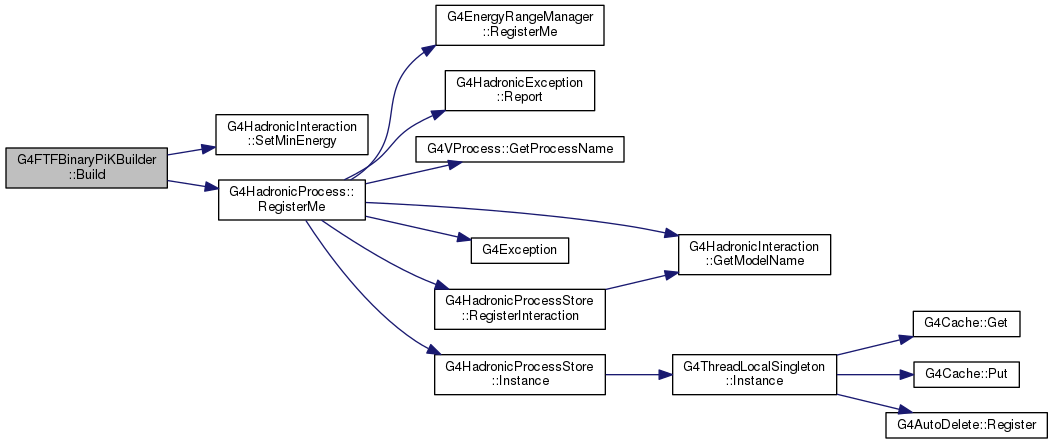

Here is the call graph for this function:

G4FTFBinaryPiKBuilder::~G4FTFBinaryPiKBuilder ( )

virtual

Definition at line 76 of file G4FTFBinaryPiKBuilder.cc.

{
  delete theStringDecay;
  delete theStringModel;
  //delete theModel;
  if ( theQuasiElastic ) delete theQuasiElastic;
}

Member Function Documentation

void G4FTFBinaryPiKBuilder::Build ( G4HadronElasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 85 of file G4FTFBinaryPiKBuilder.cc.

{}

void G4FTFBinaryPiKBuilder::Build ( G4PionPlusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 88 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->AddDataSet(thePiData);
  aP->RegisterMe(theModel);
}

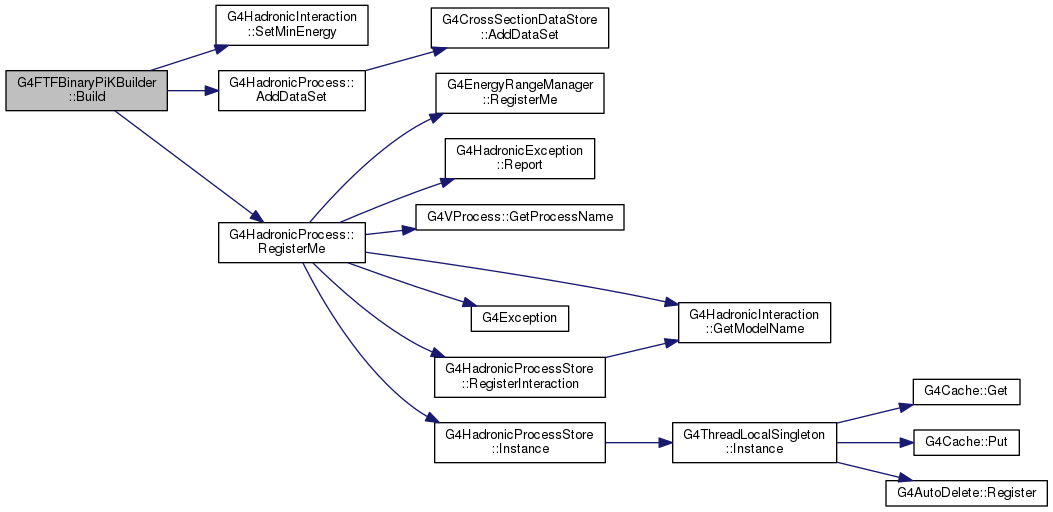

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::Build ( G4PionMinusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 96 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->AddDataSet(thePiData);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::Build ( G4KaonPlusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 104 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::Build ( G4KaonMinusInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 111 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::Build ( G4KaonZeroLInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 118 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::Build ( G4KaonZeroSInelasticProcess *  aP )

virtual

Implements G4VPiKBuilder.

Definition at line 125 of file G4FTFBinaryPiKBuilder.cc.

{
  theModel->SetMinEnergy(theMin);
  aP->RegisterMe(theModel);
}

Here is the call graph for this function:

void G4FTFBinaryPiKBuilder::SetMinEnergy ( G4double  aM )

inline

Definition at line 73 of file G4FTFBinaryPiKBuilder.hh.

{theMin = aM;}

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/physics_lists/builders/include/G4FTFBinaryPiKBuilder.hh
• source/geant4.10.03.p02/source/physics_lists/builders/src/G4FTFBinaryPiKBuilder.cc
