G4EmLEPTSPhysics Class Reference

#include <G4EmLEPTSPhysics.hh>

Inheritance diagram for G4EmLEPTSPhysics:

Collaboration diagram for G4EmLEPTSPhysics:

Public Member Functions
	G4EmLEPTSPhysics (const G4String &name="G4EmLEPTSPhysics")
virtual	~G4EmLEPTSPhysics ()
virtual void	ConstructParticle ()
virtual void	ConstructProcess ()
Public Member Functions inherited from G4VPhysicsConstructor
	G4VPhysicsConstructor (const G4String &="")
	G4VPhysicsConstructor (const G4String &name, G4int physics_type)
virtual	~G4VPhysicsConstructor ()
void	SetPhysicsName (const G4String &="")
const G4String &	GetPhysicsName () const
void	SetPhysicsType (G4int)
G4int	GetPhysicsType () const
void	SetVerboseLevel (G4int value)
G4int	GetVerboseLevel () const
G4int	GetInstanceID () const

Additional Inherited Members
Static Public Member Functions inherited from G4VPhysicsConstructor
static const G4VPCManager &	GetSubInstanceManager ()
Protected Member Functions inherited from G4VPhysicsConstructor
G4bool	RegisterProcess (G4VProcess *process, G4ParticleDefinition *particle)
G4ParticleTable::G4PTblDicIterator *	GetParticleIterator () const
Protected Attributes inherited from G4VPhysicsConstructor
G4int	verboseLevel
G4String	namePhysics
G4int	typePhysics
G4ParticleTable *	theParticleTable
G4int	g4vpcInstanceID
Static Protected Attributes inherited from G4VPhysicsConstructor
static G4RUN_DLL G4VPCManager	subInstanceManager

Detailed Description

Definition at line 46 of file G4EmLEPTSPhysics.hh.

Constructor & Destructor Documentation

G4EmLEPTSPhysics::G4EmLEPTSPhysics ( const G4String &  name = "G4EmLEPTSPhysics" )

explicit

Definition at line 68 of file G4EmLEPTSPhysics.cc.

 : G4VPhysicsConstructor(name)
{
  G4EmParameters::Instance()->SetDefaults();
  SetPhysicsType(bElectromagnetic);
}

Here is the call graph for this function:

virtual G4EmLEPTSPhysics::~G4EmLEPTSPhysics ( )

inlinevirtual

Definition at line 51 of file G4EmLEPTSPhysics.hh.

{};

Member Function Documentation

void G4EmLEPTSPhysics::ConstructParticle ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 76 of file G4EmLEPTSPhysics.cc.

{
  G4Gamma::Gamma();
  G4Electron::Electron();
  G4Positron::Positron();

// baryons
  G4Proton::Proton();

  G4GenericIon::GenericIonDefinition();

  G4DNAGenericIonsManager * genericIonsManager;
  genericIonsManager=G4DNAGenericIonsManager::Instance();
  genericIonsManager->GetIon("alpha++");
  genericIonsManager->GetIon("alpha+");
  genericIonsManager->GetIon("helium");
  genericIonsManager->GetIon("hydrogen");
  genericIonsManager->GetIon("carbon");
  genericIonsManager->GetIon("nitrogen");
  genericIonsManager->GetIon("oxygen");
  genericIonsManager->GetIon("iron");

}

Here is the call graph for this function:

void G4EmLEPTSPhysics::ConstructProcess ( void  )

virtual

Implements G4VPhysicsConstructor.

Definition at line 101 of file G4EmLEPTSPhysics.cc.

{

    auto myParticleIterator=GetParticleIterator();
    myParticleIterator->reset();

  while( (*myParticleIterator)() ){
    G4ParticleDefinition * particle = myParticleIterator->value();
    G4String               particleName = particle->GetParticleName();
    G4ProcessManager     * manager = particle->GetProcessManager();
    G4cout << " particle " << particle->GetParticleName() << " manager " << manager << G4endl; //GDEB
    if(particleName=="e-") {
      G4DNAElastic*  elastic = new G4DNAElastic("e-_G4LEPTSElastic");
      elastic->SetEmModel( new G4LEPTSElasticModel );
      manager->AddDiscreteProcess(elastic );

      G4DNAIonisation* ioni = new G4DNAIonisation("e-_G4LEPTSIonisation");
      ioni->SetEmModel( new G4LEPTSIonisationModel );
      manager->AddDiscreteProcess( ioni );

      G4DNAExcitation* excit = new G4DNAExcitation("e-_G4LEPTSExcitation");
      excit->SetEmModel( new G4LEPTSExcitationModel );
      manager->AddDiscreteProcess( excit );

      manager->AddDiscreteProcess(new G4DNADissociation("e-_G4LEPTSDissocNeutr") );

      G4DNAVibExcitation* vibExcit = new G4DNAVibExcitation("e-_G4LEPTSExcitVibrat");
      vibExcit->SetEmModel( new G4LEPTSVibExcitationModel );
      manager->AddDiscreteProcess( vibExcit );

      manager->AddDiscreteProcess( new G4DNARotExcitation("e-_G4LEPTSExcitRotat") );

      G4DNAAttachment* attach = new G4DNAAttachment("e-_G4LEPTSAttachment");
      attach->SetEmModel( new G4LEPTSAttachmentModel );
      manager->AddDiscreteProcess( attach );

    } else if(particleName=="e+") {
      G4DNAElastic*  elastic = new G4DNAElastic("e+_G4LEPTSElastic");
      elastic->SetEmModel( new G4LEPTSElasticModel );
      manager->AddDiscreteProcess(elastic );

      G4DNAIonisation* ioni = new G4DNAIonisation("e+_G4LEPTSIonisation");
      ioni->SetEmModel( new G4LEPTSIonisationModel );
      manager->AddDiscreteProcess( ioni );

      G4DNAExcitation* excit = new G4DNAExcitation("e+_G4LEPTSExcitation");
      excit->SetEmModel( new G4LEPTSExcitationModel );
      manager->AddDiscreteProcess( excit );

      manager->AddDiscreteProcess(new G4DNADissociation("e+_G4LEPTSDissocNeutr") );

      G4DNAVibExcitation* vibExcit = new G4DNAVibExcitation("e+_G4LEPTSExcitVibrat");
      vibExcit->SetEmModel( new G4LEPTSVibExcitationModel );
      manager->AddDiscreteProcess( vibExcit );

      manager->AddDiscreteProcess( new G4DNARotExcitation("e+_G4LEPTSExcitRotat") );

      G4DNAAttachment* attach = new G4DNAAttachment("e+_G4LEPTSAttachment");
      attach->SetEmModel( new G4LEPTSAttachmentModel );
      manager->AddDiscreteProcess( attach );

      manager->AddDiscreteProcess(new G4DNAPositronium("e+_G4LEPTSPositronium") );

      /*    } else if ( particleName == "proton" ) {
      manager->AddDiscreteProcess(new G4DNAExcitation("proton_G4DNAExcitation"));
      manager->AddDiscreteProcess(new G4DNAIonisation("proton_G4DNAIonisation"));
      manager->AddDiscreteProcess(new G4DNAChargeDecrease("proton_G4DNAChargeDecrease"));

    } else if ( particleName == "hydrogen" ) {
      manager->AddDiscreteProcess(new G4DNAExcitation("hydrogen_G4DNAExcitation"));
      manager->AddDiscreteProcess(new G4DNAIonisation("hydrogen_G4DNAIonisation"));
      manager->AddDiscreteProcess(new G4DNAChargeIncrease("hydrogen_G4DNAChargeIncrease"));

    } else if ( particleName == "alpha" ) {
      manager->AddDiscreteProcess(new G4DNAExcitation("alpha_G4DNAExcitation"));
      manager->AddDiscreteProcess(new G4DNAIonisation("alpha_G4DNAIonisation"));
      manager->AddDiscreteProcess(new G4DNAChargeDecrease("alpha_G4DNAChargeDecrease"));

    } else if ( particleName == "alpha+" ) {
      manager->AddDiscreteProcess(new G4DNAExcitation("alpha+_G4DNAExcitation"));
      manager->AddDiscreteProcess(new G4DNAIonisation("alpha+_G4DNAIonisation"));
      manager->AddDiscreteProcess(new G4DNAChargeDecrease("alpha+_G4DNAChargeDecrease"));
      manager->AddDiscreteProcess(new G4DNAChargeIncrease("alpha+_G4DNAChargeIncrease"));

    } else if ( particleName == "helium" ) {
      manager->AddDiscreteProcess(new G4DNAExcitation("helium_G4DNAExcitation"));
      manager->AddDiscreteProcess(new G4DNAIonisation("helium_G4DNAIonisation"));
      manager->AddDiscreteProcess(new G4DNAChargeIncrease("helium_G4DNAChargeIncrease"));

    // Extension to HZE proposed by Z. Francis

    } else if ( particleName == "carbon" ) {
      manager->AddDiscreteProcess(new G4DNAIonisation("carbon_G4DNAIonisation"));

    } else if ( particleName == "nitrogen" ) {
      manager->AddDiscreteProcess(new G4DNAIonisation("nitrogen_G4DNAIonisation"));

    } else if ( particleName == "oxygen" ) {
      manager->AddDiscreteProcess(new G4DNAIonisation("oxygen_G4DNAIonisation"));

    } else if ( particleName == "iron" ) {
      manager->AddDiscreteProcess(new G4DNAIonisation("iron_G4DNAIonisation"));
      */
    } else if (particleName == "gamma") {

      G4double LivermoreHighEnergyLimit = CLHEP::GeV;

      G4PhotoElectricEffect* thePhotoElectricEffect = new G4PhotoElectricEffect();
      G4LivermorePhotoElectricModel* theLivermorePhotoElectricModel =
    new G4LivermorePhotoElectricModel();
      theLivermorePhotoElectricModel->SetHighEnergyLimit(LivermoreHighEnergyLimit);
      thePhotoElectricEffect->AddEmModel(0, theLivermorePhotoElectricModel);
      manager->AddDiscreteProcess(thePhotoElectricEffect);

      G4ComptonScattering* theComptonScattering = new G4ComptonScattering();
      G4LivermoreComptonModel* theLivermoreComptonModel =
    new G4LivermoreComptonModel();
      theLivermoreComptonModel->SetHighEnergyLimit(LivermoreHighEnergyLimit);
      theComptonScattering->AddEmModel(0, theLivermoreComptonModel);
      manager->AddDiscreteProcess(theComptonScattering);

      G4GammaConversion* theGammaConversion = new G4GammaConversion();
      G4LivermoreGammaConversionModel* theLivermoreGammaConversionModel =
    new G4LivermoreGammaConversionModel();
      theLivermoreGammaConversionModel->SetHighEnergyLimit(LivermoreHighEnergyLimit);
      theGammaConversion->AddEmModel(0, theLivermoreGammaConversionModel);
      manager->AddDiscreteProcess(theGammaConversion);

      G4RayleighScattering* theRayleigh = new G4RayleighScattering();
      G4LivermoreRayleighModel* theRayleighModel = new G4LivermoreRayleighModel();
      theRayleighModel->SetHighEnergyLimit(LivermoreHighEnergyLimit);
      theRayleigh->AddEmModel(0, theRayleighModel);
      manager->AddDiscreteProcess(theRayleigh);
    }

  }

}

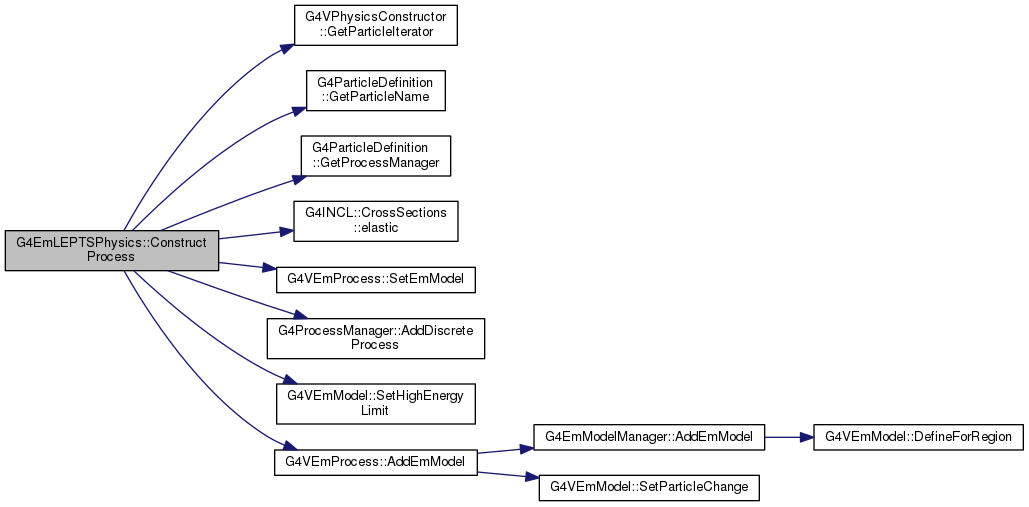

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/physics_lists/constructors/electromagnetic/include/G4EmLEPTSPhysics.hh
• source/geant4.10.03.p02/source/physics_lists/constructors/electromagnetic/src/G4EmLEPTSPhysics.cc
