G4BOptnForceCommonTruncatedExp Class Reference

#include <G4BOptnForceCommonTruncatedExp.hh>

Inheritance diagram for G4BOptnForceCommonTruncatedExp:
Inheritance graph
[legend]
Collaboration diagram for G4BOptnForceCommonTruncatedExp:
Collaboration graph
[legend]

Public Member Functions

 G4BOptnForceCommonTruncatedExp (G4String name)

virtual ~G4BOptnForceCommonTruncatedExp ()

virtual const
G4VBiasingInteractionLaw * 		ProvideOccurenceBiasingInteractionLaw (const G4BiasingProcessInterface *, G4ForceCondition &)

virtual G4double ProposeAlongStepLimit (const G4BiasingProcessInterface *)

virtual G4GPILSelection ProposeGPILSelection (const G4GPILSelection processSelection)

virtual G4VParticleChange * ApplyFinalStateBiasing (const G4BiasingProcessInterface *, const G4Track *, const G4Step *, G4bool &)

virtual G4double DistanceToApplyOperation (const G4Track *, G4double, G4ForceCondition *)

virtual G4VParticleChange * GenerateBiasingFinalState (const G4Track *, const G4Step *)

G4ILawCommonTruncatedExp * GetCommonTruncatedExpLaw ()

G4ILawForceFreeFlight * GetForceFreeFlightLaw ()

void Initialize (const G4Track *)

void UpdateForStep (const G4Step *)

void Sample ()

const G4ThreeVector & GetInitialMomentum () const

G4double GetMaximumDistance () const

void ChooseProcessToApply ()

const G4VProcess * GetProcessToApply () const

void AddCrossSection (const G4VProcess *, G4double)

size_t GetNumberOfSharing () const

void SetInteractionOccured (G4bool b)

G4bool GetInteractionOccured () const

- Public Member Functions inherited from G4VBiasingOperation
 G4VBiasingOperation (G4String name)

virtual ~G4VBiasingOperation ()

virtual void AlongMoveBy (const G4BiasingProcessInterface *, const G4Step *, G4double)

const G4String & GetName () const

std::size_t GetUniqueID () const


Detailed Description

Definition at line 60 of file G4BOptnForceCommonTruncatedExp.hh.

Constructor & Destructor Documentation

G4BOptnForceCommonTruncatedExp::G4BOptnForceCommonTruncatedExp ( G4String  name)

Definition at line 34 of file G4BOptnForceCommonTruncatedExp.cc.

35  : G4VBiasingOperation(name),
36  fNumberOfSharing(0),
37  fProcessToApply(nullptr),
38  fInteractionOccured(false),
39  fMaximumDistance(-1.0)
40 {
41  fCommonTruncatedExpLaw = new G4ILawCommonTruncatedExp("ExpLawForOperation"+name);
42  fForceFreeFlightLaw = new G4ILawForceFreeFlight ("FFFLawForOperation"+name);
43
44  fTotalCrossSection = 0.0;
45 }
G4VBiasingOperation::G4VBiasingOperation
G4VBiasingOperation(G4String name)
Definition: G4VBiasingOperation.cc:29
G4BOptnForceCommonTruncatedExp::~G4BOptnForceCommonTruncatedExp ( )
virtual

Definition at line 47 of file G4BOptnForceCommonTruncatedExp.cc.

48 {
49  if ( fCommonTruncatedExpLaw ) delete fCommonTruncatedExpLaw;
50  if ( fForceFreeFlightLaw ) delete fForceFreeFlightLaw;
51 }

Member Function Documentation

void G4BOptnForceCommonTruncatedExp::AddCrossSection ( const G4VProcess *  process,
G4double  crossSection
)

Definition at line 116 of file G4BOptnForceCommonTruncatedExp.cc.

117 {
118  fTotalCrossSection += crossSection;
119  fCrossSections[process] = crossSection;
120  fNumberOfSharing = fCrossSections.size();
121 }
G4VParticleChange * G4BOptnForceCommonTruncatedExp::ApplyFinalStateBiasing ( const G4BiasingProcessInterface *  callingProcess,
const G4Track *  track,
const G4Step *  step,
G4bool &  forceFinalState
)
virtual

Implements G4VBiasingOperation.

Definition at line 76 of file G4BOptnForceCommonTruncatedExp.cc.

80 {
81  if ( callingProcess->GetWrappedProcess() != fProcessToApply )
82  {
83  forceFinalState = true;
84  fDummyParticleChange.Initialize( *track );
85  return &fDummyParticleChange;
86  }
87  if ( fInteractionOccured )
88  {
89  forceFinalState = true;
90  fDummyParticleChange.Initialize( *track );
91  return &fDummyParticleChange;
92  }
93
94  // -- checks if process won the GPIL race:
95  G4double processGPIL = callingProcess->GetPostStepGPIL() < callingProcess->GetAlongStepGPIL() ?
96  callingProcess->GetPostStepGPIL() : callingProcess->GetAlongStepGPIL() ;
97  if ( processGPIL <= step->GetStepLength() )
98  {
99  // -- if process won, wrapped process produces the final state.
100  // -- In this case, the weight for occurence biasing is applied
101  // -- by the callingProcess, at exit of present method. This is
102  // -- selected by "forceFinalState = false":
103  forceFinalState = false;
104  fInteractionOccured = true;
105  return callingProcess->GetWrappedProcess()->PostStepDoIt( *track, *step );
106  }
107  else
108  {
109  forceFinalState = true;
110  fDummyParticleChange.Initialize( *track );
111  return &fDummyParticleChange;
112  }
113 }
G4ParticleChangeForNothing::Initialize
virtual void Initialize(const G4Track &track)
Definition: G4ParticleChangeForNothing.hh:51
G4BiasingProcessInterface::GetWrappedProcess
G4VProcess * GetWrappedProcess() const
Definition: G4BiasingProcessInterface.hh:85
G4double
double G4double
Definition: G4Types.hh:76
G4VProcess::PostStepDoIt
virtual G4VParticleChange * PostStepDoIt(const G4Track &track, const G4Step &stepData)=0

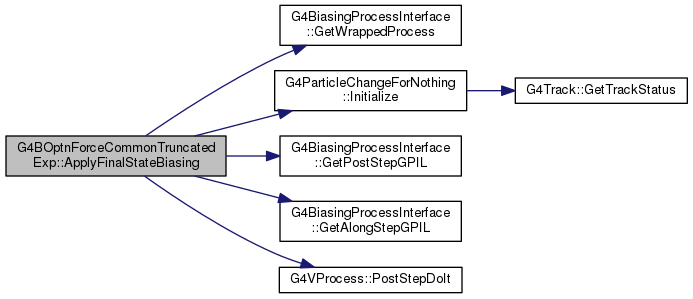

Here is the call graph for this function:

void G4BOptnForceCommonTruncatedExp::ChooseProcessToApply ( )

Definition at line 167 of file G4BOptnForceCommonTruncatedExp.cc.

168 {
169  G4double sigmaRand = G4UniformRand() * fTotalCrossSection;
170  G4double sigmaSelect = 0.0;
171  for ( std::map< const G4VProcess*, G4double>::const_iterator it = fCrossSections.begin();
172  it != fCrossSections.end();
173  it++)
174  {
175  sigmaSelect += (*it).second;
176  if ( sigmaRand <= sigmaSelect )
177  {
178  fProcessToApply = (*it).first;
179  break;
180  }
181  }
182 }
G4UniformRand
#define G4UniformRand()
Definition: Randomize.hh:97
G4double
double G4double
Definition: G4Types.hh:76

Here is the caller graph for this function:

virtual G4double G4BOptnForceCommonTruncatedExp::DistanceToApplyOperation ( const G4Track *  ,
G4double  ,
G4ForceCondition *
)
inlinevirtual

Implements G4VBiasingOperation.

Definition at line 79 of file G4BOptnForceCommonTruncatedExp.hh.

81  {return DBL_MAX;}
DBL_MAX
#define DBL_MAX
Definition: templates.hh:83
virtual G4VParticleChange* G4BOptnForceCommonTruncatedExp::GenerateBiasingFinalState ( const G4Track *  ,
const G4Step *
)
inlinevirtual

Implements G4VBiasingOperation.

Definition at line 82 of file G4BOptnForceCommonTruncatedExp.hh.

83  {return 0;}
G4ILawCommonTruncatedExp* G4BOptnForceCommonTruncatedExp::GetCommonTruncatedExpLaw ( )
inline

Definition at line 89 of file G4BOptnForceCommonTruncatedExp.hh.

90  {
91  return fCommonTruncatedExpLaw;
92  }
G4ILawForceFreeFlight* G4BOptnForceCommonTruncatedExp::GetForceFreeFlightLaw ( )
inline

Definition at line 93 of file G4BOptnForceCommonTruncatedExp.hh.

94  {
95  return fForceFreeFlightLaw;
96  }
const G4ThreeVector& G4BOptnForceCommonTruncatedExp::GetInitialMomentum ( ) const
inline

Definition at line 101 of file G4BOptnForceCommonTruncatedExp.hh.

101 { return fInitialMomentum; }
G4bool G4BOptnForceCommonTruncatedExp::GetInteractionOccured ( ) const
inline

Definition at line 108 of file G4BOptnForceCommonTruncatedExp.hh.

108 { return fInteractionOccured; }

Here is the caller graph for this function:

G4double G4BOptnForceCommonTruncatedExp::GetMaximumDistance ( ) const
inline

Definition at line 102 of file G4BOptnForceCommonTruncatedExp.hh.

102 { return fMaximumDistance; }
size_t G4BOptnForceCommonTruncatedExp::GetNumberOfSharing ( ) const
inline

Definition at line 106 of file G4BOptnForceCommonTruncatedExp.hh.

106 { return fNumberOfSharing;}
const G4VProcess* G4BOptnForceCommonTruncatedExp::GetProcessToApply ( ) const
inline

Definition at line 104 of file G4BOptnForceCommonTruncatedExp.hh.

104 { return fProcessToApply; }
void G4BOptnForceCommonTruncatedExp::Initialize ( const G4Track *  track)

Definition at line 124 of file G4BOptnForceCommonTruncatedExp.cc.

125 {
126  fCrossSections.clear();
127  fTotalCrossSection = 0.0;
128  fNumberOfSharing = 0;
129  fProcessToApply = 0;
130  fInteractionOccured = false;
131  fInitialMomentum = track->GetMomentum();
132
133  G4VSolid* currentSolid = track->GetVolume()->GetLogicalVolume()->GetSolid();
134  G4ThreeVector localPosition = (G4TransportationManager::GetTransportationManager()->
135  GetNavigatorForTracking()->
136  GetGlobalToLocalTransform()).TransformPoint(track->GetPosition());
137  G4ThreeVector localDirection = (G4TransportationManager::GetTransportationManager()->
138  GetNavigatorForTracking()->
139  GetGlobalToLocalTransform()).TransformAxis(track->GetMomentumDirection());
140  fMaximumDistance = currentSolid->DistanceToOut(localPosition, localDirection);
141  if ( fMaximumDistance <= DBL_MIN ) fMaximumDistance = 0.0;
142  fCommonTruncatedExpLaw->SetMaximumDistance( fMaximumDistance );
143 }
G4Track::GetPosition
const G4ThreeVector & GetPosition() const
G4LogicalVolume::GetSolid
G4VSolid * GetSolid() const
Definition: G4LogicalVolume.cc:364
G4TransportationManager::GetTransportationManager
static G4TransportationManager * GetTransportationManager()
Definition: G4TransportationManager.cc:100
G4Track::GetMomentum
G4ThreeVector GetMomentum() const
G4Track::GetMomentumDirection
const G4ThreeVector & GetMomentumDirection() const
G4VPhysicalVolume::GetLogicalVolume
G4LogicalVolume * GetLogicalVolume() const
DBL_MIN
#define DBL_MIN
Definition: templates.hh:75
G4Track::GetVolume
G4VPhysicalVolume * GetVolume() const
G4VSolid::DistanceToOut
virtual G4double DistanceToOut(const G4ThreeVector &p, const G4ThreeVector &v, const G4bool calcNorm=false, G4bool *validNorm=0, G4ThreeVector *n=0) const =0

Here is the call graph for this function:

virtual G4double G4BOptnForceCommonTruncatedExp::ProposeAlongStepLimit ( const G4BiasingProcessInterface *  )
inlinevirtual

Reimplemented from G4VBiasingOperation.

Definition at line 72 of file G4BOptnForceCommonTruncatedExp.hh.

72 { return DBL_MAX; }
DBL_MAX
#define DBL_MAX
Definition: templates.hh:83
G4GPILSelection G4BOptnForceCommonTruncatedExp::ProposeGPILSelection ( const G4GPILSelection  processSelection)
virtual

Reimplemented from G4VBiasingOperation.

Definition at line 70 of file G4BOptnForceCommonTruncatedExp.cc.

71 {
72  return NotCandidateForSelection;
73 }
NotCandidateForSelection
Definition: G4GPILSelection.hh:57
const G4VBiasingInteractionLaw * G4BOptnForceCommonTruncatedExp::ProvideOccurenceBiasingInteractionLaw ( const G4BiasingProcessInterface *  callingProcess,
G4ForceCondition &  proposeForceCondition
)
virtual

Implements G4VBiasingOperation.

Definition at line 54 of file G4BOptnForceCommonTruncatedExp.cc.

56 {
57  if ( callingProcess->GetWrappedProcess() == fProcessToApply )
58  {
59  proposeForceCondition = Forced;
60  return fCommonTruncatedExpLaw;
61  }
62  else
63  {
64  proposeForceCondition = Forced;
65  return fForceFreeFlightLaw;
66  }
67 }
Forced
Definition: G4ForceCondition.hh:54
G4BiasingProcessInterface::GetWrappedProcess
G4VProcess * GetWrappedProcess() const
Definition: G4BiasingProcessInterface.hh:85

Here is the call graph for this function:

void G4BOptnForceCommonTruncatedExp::Sample ( )

Definition at line 158 of file G4BOptnForceCommonTruncatedExp.cc.

159 {
160  fCommonTruncatedExpLaw->SetForceCrossSection( fTotalCrossSection );
161  fCommonTruncatedExpLaw->Sample();
162  ChooseProcessToApply();
163  fCommonTruncatedExpLaw->SetSelectedProcessXSfraction(fCrossSections[fProcessToApply] / fTotalCrossSection);
164 }
G4ILawCommonTruncatedExp::SetSelectedProcessXSfraction
void SetSelectedProcessXSfraction(G4double fXS)
Definition: G4ILawCommonTruncatedExp.hh:75

Here is the call graph for this function:

void G4BOptnForceCommonTruncatedExp::SetInteractionOccured ( G4bool  b)
inline

Definition at line 107 of file G4BOptnForceCommonTruncatedExp.hh.

107 { fInteractionOccured = b; }
test.b
tuple b
Definition: test.py:12
void G4BOptnForceCommonTruncatedExp::UpdateForStep ( const G4Step *  step)

Definition at line 146 of file G4BOptnForceCommonTruncatedExp.cc.

147 {
148  fCrossSections.clear();
149  fTotalCrossSection = 0.0;
150  fNumberOfSharing = 0;
151  fProcessToApply = 0;
152
153  fCommonTruncatedExpLaw->UpdateForStep( step->GetStepLength() );
154  fMaximumDistance = fCommonTruncatedExpLaw->GetMaximumDistance();
155 }
G4Step::GetStepLength
G4double GetStepLength() const
G4VBiasingInteractionLaw::UpdateForStep
G4double UpdateForStep(G4double truePathLength)
Definition: G4VBiasingInteractionLaw.hh:103

Here is the call graph for this function:

The documentation for this class was generated from the following files:
