G4ASCIITreeMessenger Class Reference

#include <G4ASCIITreeMessenger.hh>

Inheritance diagram for G4ASCIITreeMessenger:

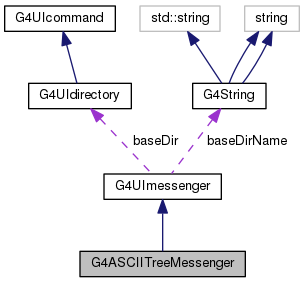

Collaboration diagram for G4ASCIITreeMessenger:

Public Member Functions
	G4ASCIITreeMessenger (G4ASCIITree *)
virtual	~G4ASCIITreeMessenger ()
G4String	GetCurrentValue (G4UIcommand *command)
void	SetNewValue (G4UIcommand *command, G4String newValue)
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
G4bool	operator== (const G4UImessenger &messenger) const
G4bool	CommandsShouldBeInMaster () const

Static Public Attributes
static std::vector< G4String >	fVerbosityGuidance

Additional Inherited Members
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (G4String s)
G4double	StoD (G4String s)
G4bool	StoB (G4String s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T >
T *	CreateCommand (const G4String &cname, const G4String &dsc)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir
G4String	baseDirName
G4bool	commandsShouldBeInMaster

Detailed Description

Definition at line 47 of file G4ASCIITreeMessenger.hh.

Constructor & Destructor Documentation

G4ASCIITreeMessenger::G4ASCIITreeMessenger

(

G4ASCIITree *

ASCIITree

)

Definition at line 45 of file G4ASCIITreeMessenger.cc.

                        :
fpASCIITree(ASCIITree) {

  G4bool omitable;

  fpDirectory = new G4UIdirectory ("/vis/ASCIITree/");
  fpDirectory -> SetGuidance ("Commands for ASCIITree control.");

  fpDirectorySet = new G4UIdirectory ("/vis/ASCIITree/set/");
  fpDirectorySet -> SetGuidance ("Settings for ASCIITree control.");

  fpCommandVerbose = new G4UIcmdWithAnInteger ("/vis/ASCIITree/verbose", this);
  fVerbosityGuidance.push_back
    ("  <  10: - does not print daughters of repeated placements,"
     " does not repeat replicas.");
  fVerbosityGuidance.push_back
    ("  >= 10: prints all physical volumes.");
  fVerbosityGuidance.push_back
    ("The level of detail is given by verbosity%10:");
  fVerbosityGuidance.push_back
    ("for each volume:");
  fVerbosityGuidance.push_back
    ("  >=  0: physical volume name.");
  fVerbosityGuidance.push_back
    ("  >=  1: logical volume name (and names of sensitive detector"
     " and readout geometry, if any).");
  fVerbosityGuidance.push_back
    ("  >=  2: solid name and type.");
  fVerbosityGuidance.push_back
    ("  >=  3: volume and density.");
  fVerbosityGuidance.push_back
    ("  >=  5: daughter-subtracted volume and mass.");
  fVerbosityGuidance.push_back
    ("  >=  6: physical volume dump.");
  fVerbosityGuidance.push_back
    ("  >=  7: polyhedron dump.");
  fVerbosityGuidance.push_back
    ("and in the summary at the end of printing:");
  fVerbosityGuidance.push_back
    ("  >=  4: daughter-included mass of top physical volume(s) in scene"
     " to depth specified.");
  fVerbosityGuidance.push_back
    ("Note: by default, culling is switched off so all volumes are seen.");
  fVerbosityGuidance.push_back
    ("Note: the mass calculation takes into account daughters, which can be"
     " time consuming.  If you want the mass of a particular subtree try:");
  fVerbosityGuidance.push_back
    ("  /vis/drawTree <subtree-physical-volume-name>");
  fVerbosityGuidance.push_back
    ("Or if you want more control, for example:");
  fVerbosityGuidance.push_back
    ("  /vis/open ATree");
  fVerbosityGuidance.push_back
    ("  /vis/ASCIITree/verbose 14");
  fVerbosityGuidance.push_back
    ("  /vis/scene/create");
  fVerbosityGuidance.push_back
    ("  /vis/scene/add/volume <subtree-physical-volume-name> ! <depth>");
  fVerbosityGuidance.push_back
    ("  /vis/sceneHandler/attach");
  fVerbosityGuidance.push_back
    ("  /vis/viewer/flush");
  fVerbosityGuidance.push_back
    ("Note: dumping the physical volumes produces a lot of output. It is"
     " advisable to select the volume of interest, as for a sub-tree above.");
  for (size_t i = 0; i < fVerbosityGuidance.size(); ++i) {
    fpCommandVerbose -> SetGuidance(fVerbosityGuidance[i]);
  }
  fpCommandVerbose -> SetParameterName ("verbosity",omitable = true);
  fpCommandVerbose -> SetDefaultValue(1);

  fpCommandSetOutFile = new G4UIcmdWithAString ("/vis/ASCIITree/set/outFile", this
);
  fpCommandSetOutFile -> SetGuidance ("Set name of output file.");
  fpCommandSetOutFile -> SetParameterName ("out-filename",
                       omitable = true);
  fpCommandSetOutFile -> SetDefaultValue ("G4cout");
}

G4ASCIITreeMessenger::~G4ASCIITreeMessenger ( )

virtual

Definition at line 124 of file G4ASCIITreeMessenger.cc.

                                            {
  delete fpCommandSetOutFile;
  delete fpDirectorySet;
  delete fpCommandVerbose;
  delete fpDirectory;
}

Member Function Documentation

G4String G4ASCIITreeMessenger::GetCurrentValue ( G4UIcommand *  command )

virtual

Reimplemented from G4UImessenger.

Definition at line 131 of file G4ASCIITreeMessenger.cc.

                                                           {
  return "";
}

void G4ASCIITreeMessenger::SetNewValue ( G4UIcommand *  command, G4String  newValue  )

virtual

Reimplemented from G4UImessenger.

Definition at line 136 of file G4ASCIITreeMessenger.cc.

                    {
  if (command == fpCommandVerbose)
    {
      fpASCIITree->SetVerbosity
    (fpCommandVerbose->GetNewIntValue(newValue));
      G4cout << "G4ASCIITree verbosity now "
         << fpASCIITree->GetVerbosity()
         << G4endl;
    }
  else if (command == fpCommandSetOutFile)
    {
      fpASCIITree -> SetOutFileName (newValue);
      G4cout << "G4ASCIITree out filename now "
             << fpASCIITree -> GetOutFileName()
             << G4endl;
    }
}

Member Data Documentation

std::vector< G4String > G4ASCIITreeMessenger::fVerbosityGuidance

static

Definition at line 53 of file G4ASCIITreeMessenger.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/source/visualization/Tree/include/G4ASCIITreeMessenger.hh
• source/geant4.10.03.p02/source/visualization/Tree/src/G4ASCIITreeMessenger.cc
