ExExChPhysicsListMessenger Class Reference

#include <ExExChPhysicsListMessenger.hh>

Inheritance diagram for ExExChPhysicsListMessenger:

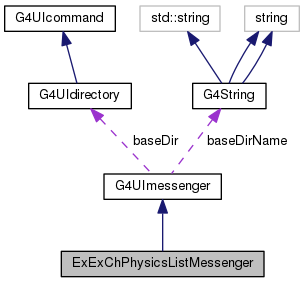

Collaboration diagram for ExExChPhysicsListMessenger:

Public Member Functions
	ExExChPhysicsListMessenger (ExExChPhysicsList *mpga)
virtual	~ExExChPhysicsListMessenger ()
virtual void	SetNewValue (G4UIcommand *command, G4String newValues)
virtual G4String	GetCurrentValue (G4UIcommand *command)
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
G4bool	operator== (const G4UImessenger &messenger) const
G4bool	CommandsShouldBeInMaster () const

Additional Inherited Members
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (G4String s)
G4double	StoD (G4String s)
G4bool	StoB (G4String s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T >
T *	CreateCommand (const G4String &cname, const G4String &dsc)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir
G4String	baseDirName
G4bool	commandsShouldBeInMaster

Detailed Description

Definition at line 42 of file ExExChPhysicsListMessenger.hh.

Constructor & Destructor Documentation

ExExChPhysicsListMessenger::ExExChPhysicsListMessenger

(

ExExChPhysicsList *

mpga

)

Definition at line 38 of file ExExChPhysicsListMessenger.cc.

:fTarget (mpga){
    fMyDirectory = new G4UIdirectory("/xtal/");

    fFilePotentialNameCmd = new G4UIcmdWithAString("/xtal/potfilename",this);
    fFilePotentialNameCmd->SetGuidance("Filename for input potential vector.");
    fFilePotentialNameCmd->SetParameterName("potfilename",true);
    fFilePotentialNameCmd->SetDefaultValue("");
    fTransverseVariationMaxCmd =
        new G4UIcmdWithADoubleAndUnit("/xtal/setTransVarMax",this);
    fTransverseVariationMaxCmd->SetGuidance("Integration - transverse variation max");
    fTransverseVariationMaxCmd->SetParameterName("trvarmax",true);
    fTransverseVariationMaxCmd->SetDefaultValue(2.E-2);
    fTransverseVariationMaxCmd->SetDefaultUnit("angstrom");
    fTransverseVariationMaxCmd->SetRange("trvarmax>=0.0");


    fTimeStepMinCmd =
        new G4UIcmdWithADoubleAndUnit("/xtal/setTimeStepMin",this);
    fTimeStepMinCmd->SetGuidance("Integration - time step min");
    fTimeStepMinCmd->SetParameterName("timestmin",true);
    fTimeStepMinCmd->SetDefaultValue(2.E0);
    fTimeStepMinCmd->SetDefaultUnit("angstrom");
    fTimeStepMinCmd->SetRange("timestmin>=0.0");}

Here is the call graph for this function:

ExExChPhysicsListMessenger::~ExExChPhysicsListMessenger ( )

virtual

Definition at line 66 of file ExExChPhysicsListMessenger.cc.

                                                       {
    delete fFilePotentialNameCmd;
    delete fTransverseVariationMaxCmd;
    delete fTimeStepMinCmd;}

Member Function Documentation

G4String ExExChPhysicsListMessenger::GetCurrentValue ( G4UIcommand *  command )

virtual

Reimplemented from G4UImessenger.

Definition at line 88 of file ExExChPhysicsListMessenger.cc.

                                                                  {
    G4String cv;
    if( command==fFilePotentialNameCmd ){
        cv = fTarget->GetFilePotentialName();
    }
    if(command==fTransverseVariationMaxCmd ){
        cv = fTransverseVariationMaxCmd->ConvertToString(fTarget->GetTransverseVariationMax());
    }
    if(command==fTimeStepMinCmd ){
        cv = fTimeStepMinCmd->ConvertToString(fTarget->GetTimeStepMin());
    }
    return cv;
}

Here is the call graph for this function:

void ExExChPhysicsListMessenger::SetNewValue ( G4UIcommand *  command, G4String  newValues  )

virtual

Reimplemented from G4UImessenger.

Definition at line 73 of file ExExChPhysicsListMessenger.cc.

                                                                     {
    if( command==fFilePotentialNameCmd ){
        fTarget->SetFilePotentialName(newValue);
    }
    if(command==fTransverseVariationMaxCmd ){
        fTarget->SetTransverseVariationMax(fTransverseVariationMaxCmd->GetNewDoubleValue(newValue));
    }
    if(command==fTimeStepMinCmd ){
        fTarget->SetTimeStepMin(fTimeStepMinCmd->GetNewDoubleValue(newValue));
    }
}

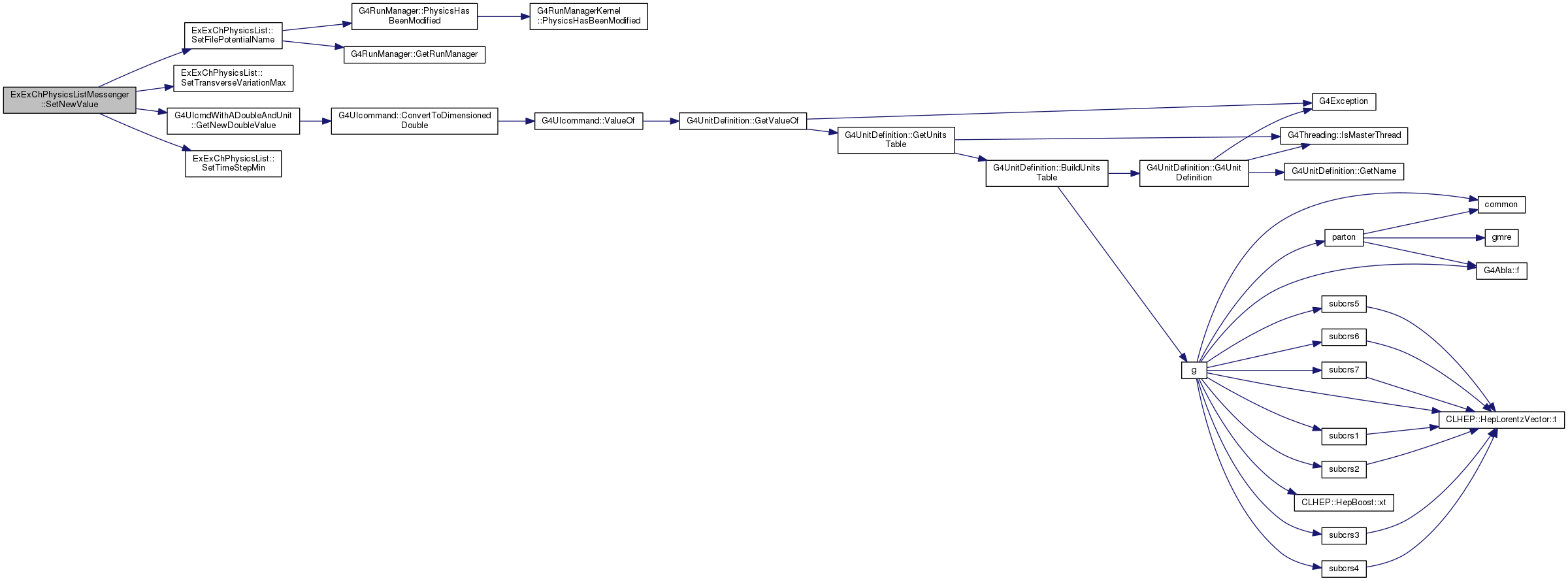

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/extended/exoticphysics/channeling/include/ExExChPhysicsListMessenger.hh
• source/geant4.10.03.p02/examples/extended/exoticphysics/channeling/src/ExExChPhysicsListMessenger.cc
