ExExChHyperonFTFPBuilder Class Reference

#include <ExExChHyperonFTFPBuilder.hh>

Public Member Functions
	ExExChHyperonFTFPBuilder ()
virtual	~ExExChHyperonFTFPBuilder ()
void	Build ()

Detailed Description

Definition at line 58 of file ExExChHyperonFTFPBuilder.hh.

Constructor & Destructor Documentation

ExExChHyperonFTFPBuilder::ExExChHyperonFTFPBuilder

(

)

Definition at line 41 of file ExExChHyperonFTFPBuilder.cc.

                                                  :
theLambdaInelastic(0),
theAntiLambdaInelastic(0),
theSigmaMinusInelastic(0),
theAntiSigmaMinusInelastic(0),
theSigmaPlusInelastic(0),
theAntiSigmaPlusInelastic(0),
theXiZeroInelastic(0),
theAntiXiZeroInelastic(0),
theXiMinusInelastic(0),
theAntiXiMinusInelastic(0),
theOmegaMinusInelastic(0),
theAntiOmegaMinusInelastic(0),
wasActivated(false)
{

    // Hyperon : Bertini at low energies, then FTFP

    HyperonFTFP = new G4TheoFSGenerator("FTFP");

    HyperonFTFP->SetMinEnergy( 2.*GeV );
    HyperonFTFP->SetMaxEnergy( 100.*TeV );

    theStringModel = new G4FTFModel;
    theLund = new G4LundStringFragmentation;
    theStringDecay = new G4ExcitedStringDecay(theLund);
    theStringModel->SetFragmentationModel(theStringDecay);

    theCascade = new G4GeneratorPrecompoundInterface;

    theHandler =new G4ExcitationHandler;
    thePreEquilib = new G4PreCompoundModel(theHandler);
    theCascade->SetDeExcitation(thePreEquilib);

    HyperonFTFP->SetTransport(theCascade);
    HyperonFTFP->SetHighEnergyGenerator(theStringModel);

    theBertini = new G4CascadeInterface;
    theBertini->SetMinEnergy( 0.*GeV );
    theBertini->SetMaxEnergy( 6.*GeV );

    // AntiHyperons: Use FTFP for full energy range, starting at 0.

    AntiHyperonFTFP = new G4TheoFSGenerator("FTFP");
    AntiHyperonFTFP->SetMinEnergy( 0.*GeV );
    AntiHyperonFTFP->SetMaxEnergy( 100.*TeV );
    AntiHyperonFTFP->SetTransport(theCascade);
    AntiHyperonFTFP->SetHighEnergyGenerator(theStringModel);

    // use CHIPS cross sections
    theCHIPSInelastic = G4CrossSectionDataSetRegistry::
        Instance()->GetCrossSectionDataSet(
        G4ChipsHyperonInelasticXS::Default_Name());
}

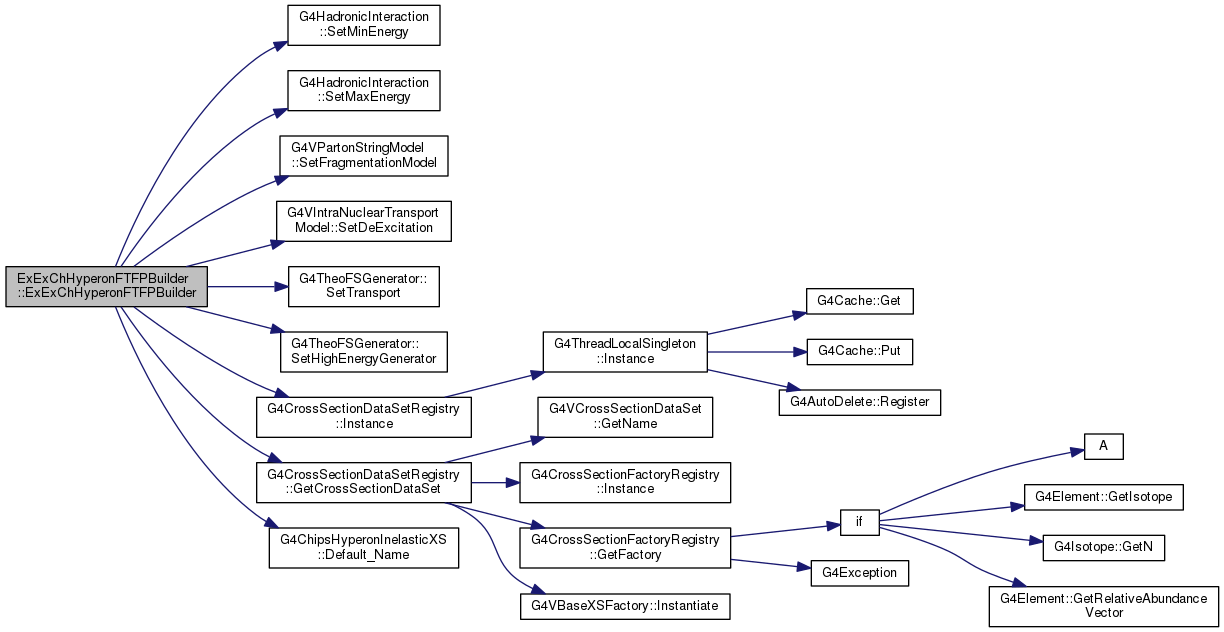

Here is the call graph for this function:

ExExChHyperonFTFPBuilder::~ExExChHyperonFTFPBuilder ( )

virtual

Definition at line 98 of file ExExChHyperonFTFPBuilder.cc.

{
    delete HyperonFTFP;
    delete theStringModel;
    delete theStringDecay;
    delete theCascade;
    delete thePreEquilib;
    //  delete theHandler;
    delete theBertini;
    delete AntiHyperonFTFP;

    if (wasActivated) {
        delete theLambdaInelastic;
        delete theAntiLambdaInelastic;
        delete theSigmaMinusInelastic;
        delete theAntiSigmaMinusInelastic;
        delete theSigmaPlusInelastic;
        delete theAntiSigmaPlusInelastic;
        delete theXiMinusInelastic;
        delete theAntiXiMinusInelastic;
        delete theXiZeroInelastic;
        delete theAntiXiZeroInelastic;
        delete theOmegaMinusInelastic;
        delete theAntiOmegaMinusInelastic;
    }
}

Member Function Documentation

void ExExChHyperonFTFPBuilder::Build

(

void

)

Definition at line 127 of file ExExChHyperonFTFPBuilder.cc.

{
    G4ProcessManager * aProcMan = 0;
    wasActivated = true;

    // Lambda
    theLambdaInelastic = new G4LambdaInelasticProcess();
    theLambdaInelastic->RegisterMe(theBertini);
    theLambdaInelastic->RegisterMe(HyperonFTFP);
    theLambdaInelastic->AddDataSet(theCHIPSInelastic);
    aProcMan = G4Lambda::Lambda()->GetProcessManager();
    aProcMan->AddDiscreteProcess(theLambdaInelastic);

    // AntiLambda
    theAntiLambdaInelastic = new G4AntiLambdaInelasticProcess();
    theAntiLambdaInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiLambdaInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiLambda::AntiLambda()->GetProcessManager();
    aProcMan->AddDiscreteProcess(theAntiLambdaInelastic);

    // SigmaMinus
    theSigmaMinusInelastic = new G4SigmaMinusInelasticProcess();
    theSigmaMinusInelastic->RegisterMe(theBertini);
    theSigmaMinusInelastic->RegisterMe(HyperonFTFP);
    theSigmaMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4SigmaMinus::SigmaMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theSigmaMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theSigmaMinusInelastic_w->RegisterProcess(theSigmaMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theSigmaMinusInelastic_w);

    // anti-SigmaMinus
    theAntiSigmaMinusInelastic = new G4AntiSigmaMinusInelasticProcess();
    theAntiSigmaMinusInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiSigmaMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiSigmaMinus::AntiSigmaMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theAntiSigmaMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theAntiSigmaMinusInelastic_w->RegisterProcess(theAntiSigmaMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theAntiSigmaMinusInelastic_w);

    // SigmaPlus
    theSigmaPlusInelastic = new G4SigmaPlusInelasticProcess();
    theSigmaPlusInelastic->RegisterMe(theBertini);
    theSigmaPlusInelastic->RegisterMe(HyperonFTFP);
    theSigmaPlusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4SigmaPlus::SigmaPlus()->GetProcessManager();
    XWrapperDiscreteProcess* theSigmaPlusInelastic_w =
        new XWrapperDiscreteProcess();
    theSigmaPlusInelastic_w->RegisterProcess(theSigmaPlusInelastic,1);
    aProcMan->AddDiscreteProcess(theSigmaPlusInelastic_w);

    // anti-SigmaPlus
    theAntiSigmaPlusInelastic = new G4AntiSigmaPlusInelasticProcess();
    theAntiSigmaPlusInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiSigmaPlusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiSigmaPlus::AntiSigmaPlus()->GetProcessManager();
    XWrapperDiscreteProcess* theAntiSigmaPlusInelastic_w =
        new XWrapperDiscreteProcess();
    theAntiSigmaPlusInelastic_w->RegisterProcess(theAntiSigmaPlusInelastic,1);
    aProcMan->AddDiscreteProcess(theAntiSigmaPlusInelastic_w);

    // XiMinus
    theXiMinusInelastic = new G4XiMinusInelasticProcess();
    theXiMinusInelastic->RegisterMe(theBertini);
    theXiMinusInelastic->RegisterMe(HyperonFTFP);
    theXiMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4XiMinus::XiMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theXiMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theXiMinusInelastic_w->RegisterProcess(theXiMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theXiMinusInelastic_w);

    // anti-XiMinus
    theAntiXiMinusInelastic = new G4AntiXiMinusInelasticProcess();
    theAntiXiMinusInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiXiMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiXiMinus::AntiXiMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theAntiXiMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theAntiXiMinusInelastic_w->RegisterProcess(theAntiXiMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theAntiXiMinusInelastic_w);

    // XiZero
    theXiZeroInelastic = new G4XiZeroInelasticProcess();
    theXiZeroInelastic->RegisterMe(theBertini);
    theXiZeroInelastic->RegisterMe(HyperonFTFP);
    theXiZeroInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4XiZero::XiZero()->GetProcessManager();
    aProcMan->AddDiscreteProcess(theXiZeroInelastic);

    // anti-XiZero
    theAntiXiZeroInelastic = new G4AntiXiZeroInelasticProcess();
    theAntiXiZeroInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiXiZeroInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiXiZero::AntiXiZero()->GetProcessManager();
    aProcMan->AddDiscreteProcess(theAntiXiZeroInelastic);

    // OmegaMinus
    theOmegaMinusInelastic = new G4OmegaMinusInelasticProcess();
    theOmegaMinusInelastic->RegisterMe(theBertini);
    theOmegaMinusInelastic->RegisterMe(HyperonFTFP);
    theOmegaMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4OmegaMinus::OmegaMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theOmegaMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theOmegaMinusInelastic_w->RegisterProcess(theOmegaMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theOmegaMinusInelastic_w);

    // anti-OmegaMinus
    theAntiOmegaMinusInelastic = new G4AntiOmegaMinusInelasticProcess();
    theAntiOmegaMinusInelastic->RegisterMe(AntiHyperonFTFP);
    theAntiOmegaMinusInelastic->AddDataSet(theCHIPSInelastic);

    aProcMan = G4AntiOmegaMinus::AntiOmegaMinus()->GetProcessManager();
    XWrapperDiscreteProcess* theAntiOmegaMinusInelastic_w =
        new XWrapperDiscreteProcess();
    theAntiOmegaMinusInelastic_w->RegisterProcess(theAntiOmegaMinusInelastic,1);
    aProcMan->AddDiscreteProcess(theAntiOmegaMinusInelastic_w);
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/extended/exoticphysics/channeling/include/ExExChHyperonFTFPBuilder.hh
• source/geant4.10.03.p02/examples/extended/exoticphysics/channeling/src/ExExChHyperonFTFPBuilder.cc
