G4VisCommandSceneAddEventID Class Reference

#include <G4VisCommandsSceneAdd.hh>

Inheritance diagram for G4VisCommandSceneAddEventID:

Collaboration diagram for G4VisCommandSceneAddEventID:

Public Member Functions
	G4VisCommandSceneAddEventID ()
virtual	~G4VisCommandSceneAddEventID ()
G4String	GetCurrentValue (G4UIcommand *command)
void	SetNewValue (G4UIcommand *command, G4String newValue)
Public Member Functions inherited from G4VVisCommandScene
	G4VVisCommandScene ()
virtual	~G4VVisCommandScene ()
Public Member Functions inherited from G4VVisCommand
	G4VVisCommand ()
virtual	~G4VVisCommand ()
Public Member Functions inherited from G4UImessenger
	G4UImessenger ()
	G4UImessenger (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
virtual	~G4UImessenger ()
G4bool	operator== (const G4UImessenger &messenger) const
G4bool	CommandsShouldBeInMaster () const

Additional Inherited Members
Static Public Member Functions inherited from G4VVisCommand
static void	SetVisManager (G4VisManager *)
static const G4Colour &	GetCurrentColour ()
static G4double	GetCurrentLineWidth ()
static const G4Colour &	GetCurrentTextColour ()
static G4Text::Layout	GetCurrentTextLayout ()
static G4double	GetCurrentTextSize ()
Protected Member Functions inherited from G4VVisCommandScene
G4String	CurrentSceneName ()
Protected Member Functions inherited from G4VVisCommand
void	UpdateVisManagerScene (const G4String &sceneName="")
Protected Member Functions inherited from G4UImessenger
G4String	ItoS (G4int i)
G4String	DtoS (G4double a)
G4String	BtoS (G4bool b)
G4int	StoI (G4String s)
G4double	StoD (G4String s)
G4bool	StoB (G4String s)
void	AddUIcommand (G4UIcommand *newCommand)
void	CreateDirectory (const G4String &path, const G4String &dsc, G4bool commandsToBeBroadcasted=true)
template<typename T >
T *	CreateCommand (const G4String &cname, const G4String &dsc)
Static Protected Member Functions inherited from G4VVisCommand
static G4String	ConvertToString (G4double x, G4double y, const char *unitName)
static void	ConvertToDoublePair (const G4String &paramString, G4double &xval, G4double &yval)
Protected Attributes inherited from G4UImessenger
G4UIdirectory *	baseDir
G4String	baseDirName
G4bool	commandsShouldBeInMaster
Static Protected Attributes inherited from G4VVisCommand
static G4VisManager *	fpVisManager = 0
static G4int	fErrorCode = 0
static G4Colour	fCurrentColour = G4Colour::White()
static G4double	fCurrentLineWidth = 1.
static G4Colour	fCurrentTextColour = G4Colour::Blue()
static G4Text::Layout	fCurrentTextLayout = G4Text::left
static G4double	fCurrentTextSize = 12.
static G4ModelingParameters::PVNameCopyNoPath	fCurrentTouchablePath

Detailed Description

Definition at line 131 of file G4VisCommandsSceneAdd.hh.

Constructor & Destructor Documentation

G4VisCommandSceneAddEventID::G4VisCommandSceneAddEventID

(

)

Definition at line 534 of file G4VisCommandsSceneAdd.cc.

                                                          {
  G4bool omitable;
  fpCommand = new G4UIcommand ("/vis/scene/add/eventID", this);
  fpCommand -> SetGuidance ("Adds eventID to current scene.");
  fpCommand -> SetGuidance
    ("Run and event numbers are drawn at end of event or run when"
     "\n the scene in which they are added is current.");
  G4UIparameter* parameter;
  parameter = new G4UIparameter ("size", 'i', omitable = true);
  parameter -> SetGuidance ("Screen size of text in pixels.");
  parameter -> SetDefaultValue (18);
  fpCommand -> SetParameter (parameter);
  parameter = new G4UIparameter ("x-position", 'd', omitable = true);
  parameter -> SetGuidance ("x screen position in range -1 < x < 1.");
  parameter -> SetDefaultValue (-0.95);
  fpCommand -> SetParameter (parameter);
  parameter = new G4UIparameter ("y-position", 'd', omitable = true);
  parameter -> SetGuidance ("y screen position in range -1 < y < 1.");
  parameter -> SetDefaultValue (0.9);
  fpCommand -> SetParameter (parameter);
  parameter = new G4UIparameter ("layout", 's', omitable = true);
  parameter -> SetGuidance ("Layout, i.e., adjustment: left|centre|right.");
  parameter -> SetDefaultValue ("left");
  fpCommand -> SetParameter (parameter);
}

G4VisCommandSceneAddEventID::~G4VisCommandSceneAddEventID ( )

virtual

Definition at line 560 of file G4VisCommandsSceneAdd.cc.

                                                           {
  delete fpCommand;
}

Member Function Documentation

G4String G4VisCommandSceneAddEventID::GetCurrentValue ( G4UIcommand *  command )

virtual

Reimplemented from G4UImessenger.

Definition at line 564 of file G4VisCommandsSceneAdd.cc.

                                                                   {
  return "";
}

void G4VisCommandSceneAddEventID::SetNewValue ( G4UIcommand *  command, G4String  newValue  )

virtual

Reimplemented from G4UImessenger.

Definition at line 568 of file G4VisCommandsSceneAdd.cc.

{
  G4VisManager::Verbosity verbosity = fpVisManager->GetVerbosity();
  G4bool warn(verbosity >= G4VisManager::warnings);

  G4Scene* pScene = fpVisManager->GetCurrentScene();
  if (!pScene) {
    if (verbosity >= G4VisManager::errors) {
      G4cerr << "ERROR: No current scene.  Please create one." << G4endl;
    }
    return;
  }

  G4int size;
  G4double x, y;
  G4String layoutString;
  std::istringstream is(newValue);
  is >> size >> x >> y >> layoutString;

  G4Text::Layout layout = G4Text::right;
  if (layoutString(0) == 'l') layout = G4Text::left;
  else if (layoutString(0) == 'c') layout = G4Text::centre;
  else if (layoutString(0) == 'r') layout = G4Text::right;

  EventID* eventID = new EventID(fpVisManager, size, x, y, layout);
  G4VModel* model =
    new G4CallbackModel<G4VisCommandSceneAddEventID::EventID>(eventID);
  model->SetType("EventID");
  model->SetGlobalTag("EventID");
  model->SetGlobalDescription("EventID");
  const G4String& currentSceneName = pScene -> GetName ();
  G4bool successful = pScene -> AddEndOfEventModel (model, warn);
  if (successful) {
    if (verbosity >= G4VisManager::confirmations) {
      G4cout << "EventID has been added to scene \""
         << currentSceneName << "\"."
         << G4endl;
    }
  }
  else G4VisCommandsSceneAddUnsuccessful(verbosity);
  UpdateVisManagerScene (currentSceneName);
}

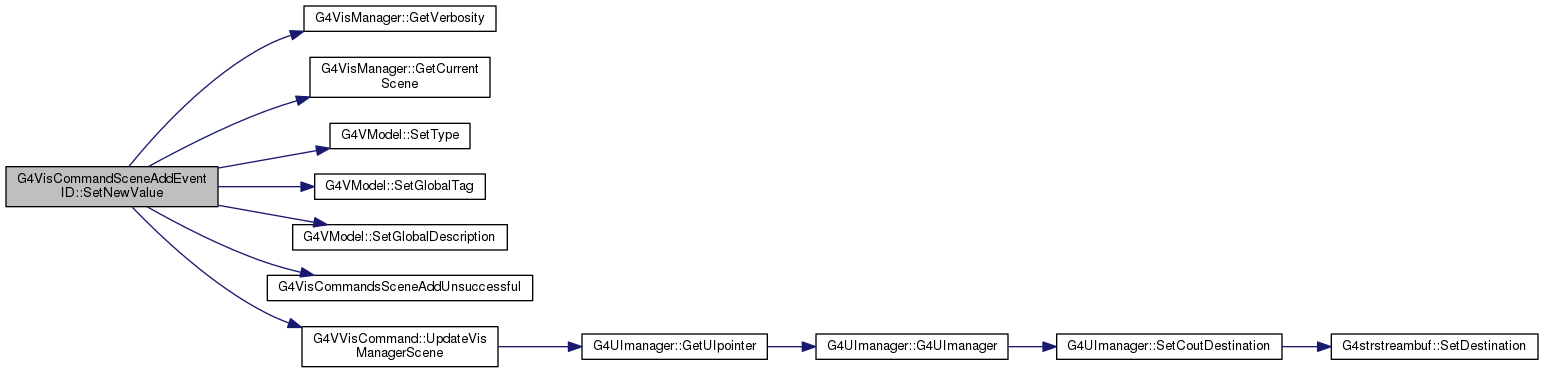

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• geant4.10.03.p01/source/visualization/management/include/G4VisCommandsSceneAdd.hh
• geant4.10.03.p01/source/visualization/management/src/G4VisCommandsSceneAdd.cc
