FCALTestbeamSetupSD Class Reference

#include <FCALTestbeamSetupSD.hh>

Inheritance diagram for FCALTestbeamSetupSD:

Collaboration diagram for FCALTestbeamSetupSD:

Public Member Functions
	FCALTestbeamSetupSD (G4String)
	~FCALTestbeamSetupSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	clear ()
void	DrawAll ()
void	PrintAll ()
Public Member Functions inherited from G4VSensitiveDetector
	G4VSensitiveDetector (G4String name)
	G4VSensitiveDetector (const G4VSensitiveDetector &right)
virtual	~G4VSensitiveDetector ()
G4VSensitiveDetector &	operator= (const G4VSensitiveDetector &right)
G4int	operator== (const G4VSensitiveDetector &right) const
G4int	operator!= (const G4VSensitiveDetector &right) const
G4bool	Hit (G4Step *aStep)
void	SetROgeometry (G4VReadOutGeometry *value)
void	SetFilter (G4VSDFilter *value)
G4int	GetNumberOfCollections () const
G4String	GetCollectionName (G4int id) const
void	SetVerboseLevel (G4int vl)
void	Activate (G4bool activeFlag)
G4bool	isActive () const
G4String	GetName () const
G4String	GetPathName () const
G4String	GetFullPathName () const
G4VReadOutGeometry *	GetROgeometry () const
G4VSDFilter *	GetFilter () const
virtual G4VSensitiveDetector *	Clone () const

Public Attributes
G4double	EBeamS1
G4double	EBeamS2
G4double	EBeamS3
G4double	EHoleScint
G4double	EBeamHole
G4double	EBeamDead
G4int	TailCatcherID
G4double	ETailVis [NLENGTH]
G4double	ETailDep [NLENGTH]

Additional Inherited Members
Protected Member Functions inherited from G4VSensitiveDetector
virtual G4int	GetCollectionID (G4int i)
Protected Attributes inherited from G4VSensitiveDetector
G4CollectionNameVector	collectionName
G4String	SensitiveDetectorName
G4String	thePathName
G4String	fullPathName
G4int	verboseLevel
G4bool	active
G4VReadOutGeometry *	ROgeometry
G4VSDFilter *	filter

Detailed Description

Definition at line 49 of file FCALTestbeamSetupSD.hh.

Constructor & Destructor Documentation

FCALTestbeamSetupSD::FCALTestbeamSetupSD

(

G4String

name

)

Definition at line 53 of file FCALTestbeamSetupSD.cc.

                                                      : G4VSensitiveDetector(name)
{}

FCALTestbeamSetupSD::~FCALTestbeamSetupSD

(

)

Definition at line 58 of file FCALTestbeamSetupSD.cc.

{}

Member Function Documentation

void FCALTestbeamSetupSD::clear ( void  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 151 of file FCALTestbeamSetupSD.cc.

{}

void FCALTestbeamSetupSD::DrawAll ( void  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 156 of file FCALTestbeamSetupSD.cc.

{}

void FCALTestbeamSetupSD::EndOfEvent ( G4HCofThisEvent *  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 129 of file FCALTestbeamSetupSD.cc.

{
  G4cout << " Visisble Energy in S1 , S2 , S3 in (MeV)" << G4endl;
  G4cout << EBeamS1/MeV << " " << EBeamS2/MeV << " " << EBeamS3/MeV << " " << G4endl;

  G4cout << " Visible Energy in Hole Counter  (MeV) " << G4endl;
  G4cout << EHoleScint/MeV << " " << EBeamHole/MeV << G4endl;

  G4cout << " Visible Energy in Upstream Dead Materials " << G4endl;
  G4cout << EBeamDead/MeV << G4endl;

  G4cout << " Visible Energy in Tail Catcher Scintillator" << G4endl;
  G4int j;
  for (j=1; j<8 ; j++) {G4cout <<  ETailVis[j]/MeV << " " ;};  G4cout << G4endl;

  G4cout << " Visible Energy in Tail Catcher Absorber" << G4endl;
  for (j=1; j<7 ; j++) {G4cout <<  ETailDep[j]/MeV << " " ;};  G4cout << G4endl;

}

void FCALTestbeamSetupSD::Initialize ( G4HCofThisEvent *  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 63 of file FCALTestbeamSetupSD.cc.

{
  EBeamS1 = EBeamS2 = EBeamS3 = 0.;
  EHoleScint = EBeamHole = 0.;
  EBeamDead = 0;
  G4int j;
  for (j =0 ; j<NLENGTH ; j++) {
    ETailVis[j] = 0.;
    ETailDep[j] = 0.;
  }
  TailCatcherID = 0;
}

void FCALTestbeamSetupSD::PrintAll ( void  )

virtual

Reimplemented from G4VSensitiveDetector.

Definition at line 161 of file FCALTestbeamSetupSD.cc.

{}

G4bool FCALTestbeamSetupSD::ProcessHits ( G4Step *  aStep, G4TouchableHistory *    )

virtual

Implements G4VSensitiveDetector.

Definition at line 78 of file FCALTestbeamSetupSD.cc.

{

  G4double edep = aStep->GetTotalEnergyDeposit();
  if (edep==0.) return true;

  G4TouchableHistory* theTouchable
    = (G4TouchableHistory*)(aStep->GetPreStepPoint()->GetTouchable());
  G4VPhysicalVolume* physVol = theTouchable->GetVolume();

  G4String name = physVol->GetName();
  TailCatcherID = physVol->GetCopyNo();

  if(name == "ScintS1Physical") {
    EBeamS1 = EBeamS1 + edep;}

  else if(name == "ScintS2Physical") {
    EBeamS2 = EBeamS2 + edep;}

  else if(name == "ScintS3Physical") {
    EBeamS3 = EBeamS3 + edep;}

  else if(name == "HoleScintPhysical"){ EHoleScint += edep;}
  else if(name == "HoleCntrScintPhysical"){
    EBeamHole = EBeamHole + edep;}

  else if(name == "MWPCPhysical") { EBeamDead += edep;}
  else if(name == "HoleCntrPbPhysical") { EBeamDead += edep;}
  else if(name == "HoleCntrAlPhysical") { EBeamDead += edep;}
  else if(name == "LeadWallPhysical") { EBeamDead += edep;}
  else if(name == "IronWallPhysical") { EBeamDead += edep;}
  else if(TailCatcherID >= 0 && TailCatcherID < NLENGTH) {
    if(name == "BigScintPhysical") {
      ETailVis[TailCatcherID] += edep;
    }
    else if(name == "SmallScintPhysical") {
      if(TailCatcherID+3 < NLENGTH)  ETailVis[TailCatcherID + 3] += edep;
    }
    else if(name == "BigIronPhysical") {
      ETailDep[TailCatcherID] += edep;
    }
    else if(name == "SmallIronPhysical") {
      if(TailCatcherID+2 < NLENGTH)  ETailDep[TailCatcherID+2] += edep;
    }
  }

  return true;
}

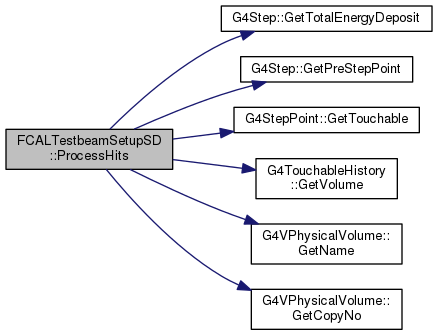

Here is the call graph for this function:

Member Data Documentation

G4double FCALTestbeamSetupSD::EBeamDead

Definition at line 75 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::EBeamHole

Definition at line 74 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::EBeamS1

Definition at line 73 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::EBeamS2

Definition at line 73 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::EBeamS3

Definition at line 73 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::EHoleScint

Definition at line 74 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::ETailDep[NLENGTH]

Definition at line 77 of file FCALTestbeamSetupSD.hh.

G4double FCALTestbeamSetupSD::ETailVis[NLENGTH]

Definition at line 77 of file FCALTestbeamSetupSD.hh.

G4int FCALTestbeamSetupSD::TailCatcherID

Definition at line 76 of file FCALTestbeamSetupSD.hh.

---

The documentation for this class was generated from the following files:

• source/geant4.10.03.p02/examples/advanced/lAr_calorimeter/include/FCALTestbeamSetupSD.hh
• source/geant4.10.03.p02/examples/advanced/lAr_calorimeter/src/FCALTestbeamSetupSD.cc
